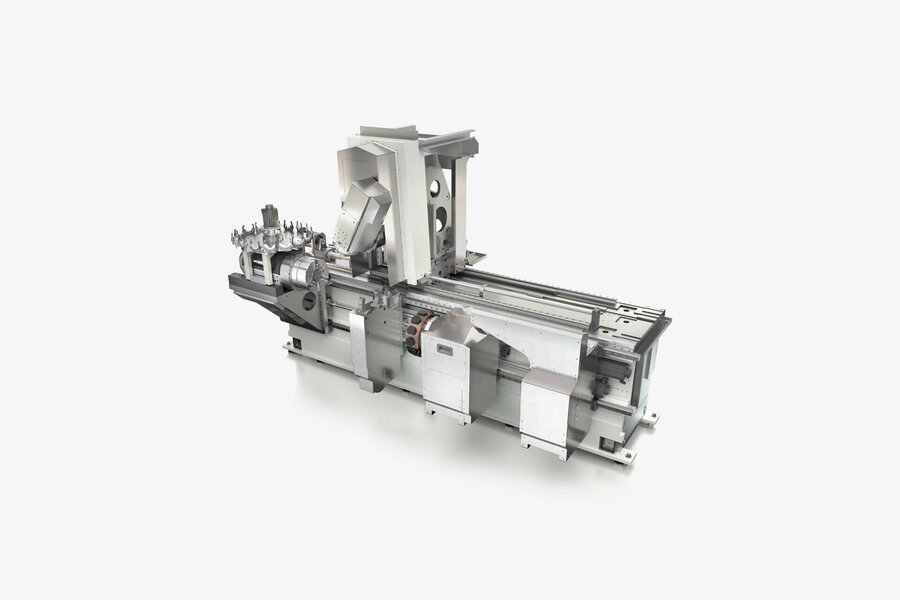

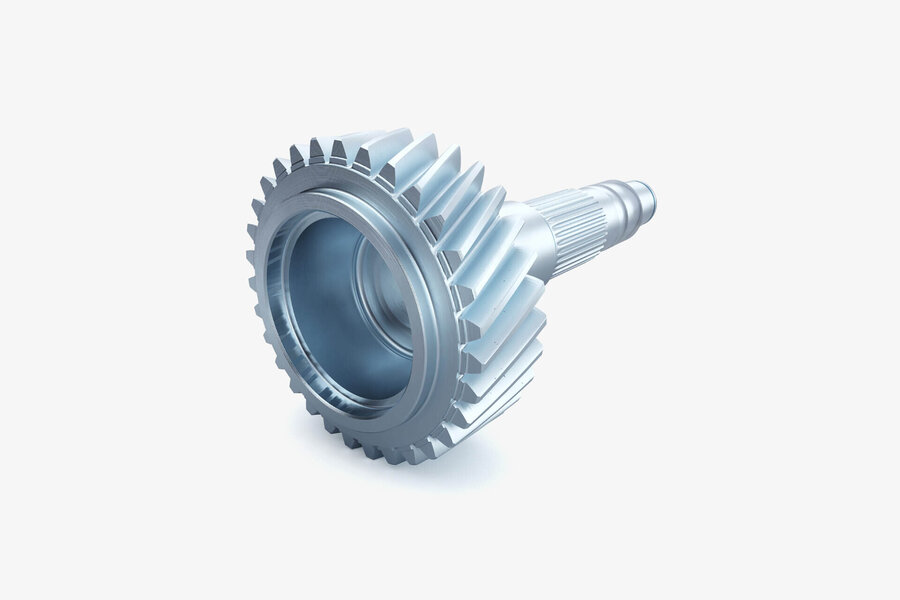

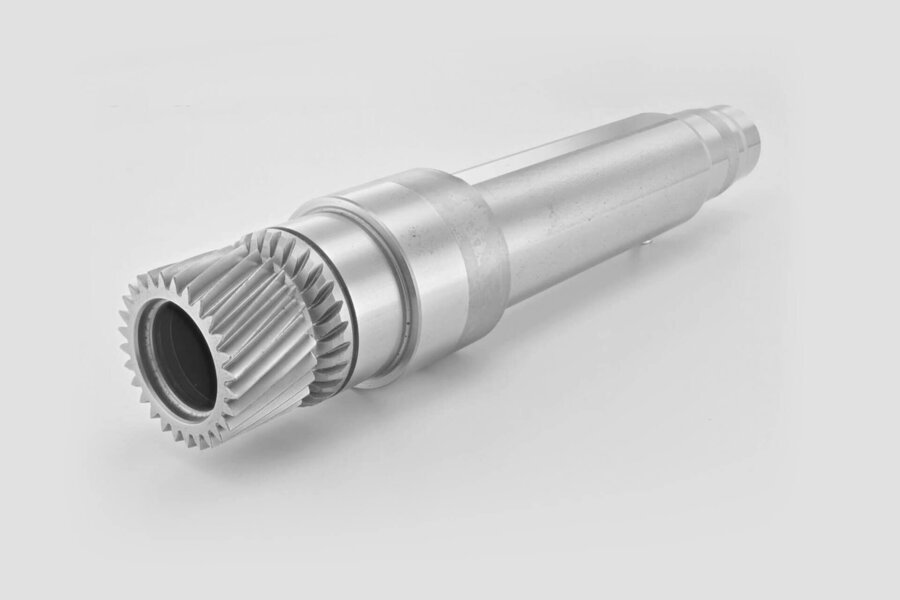

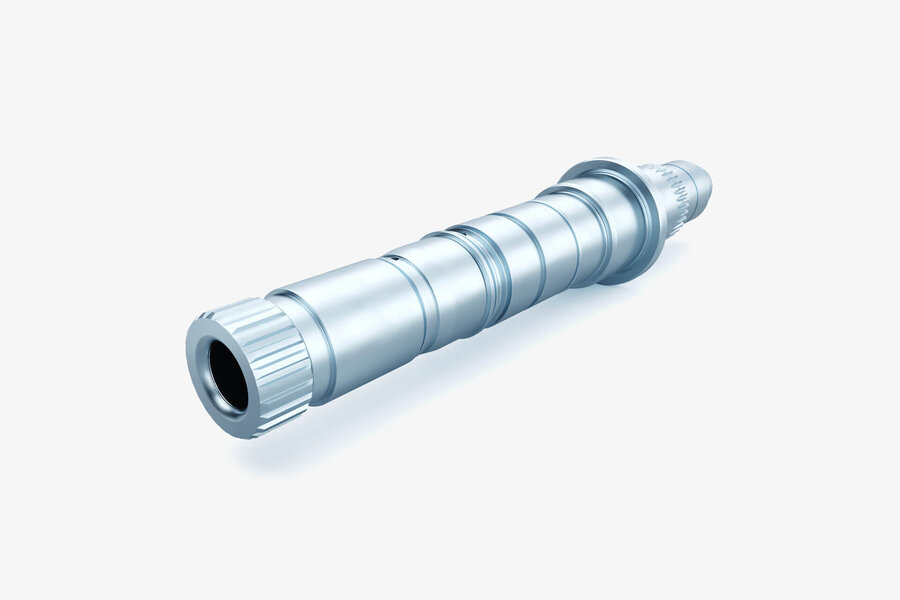

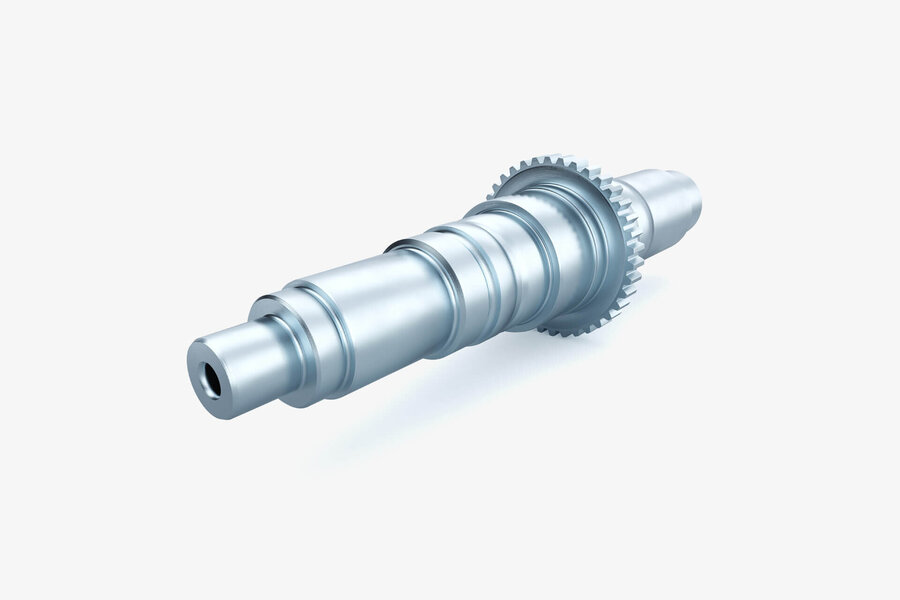

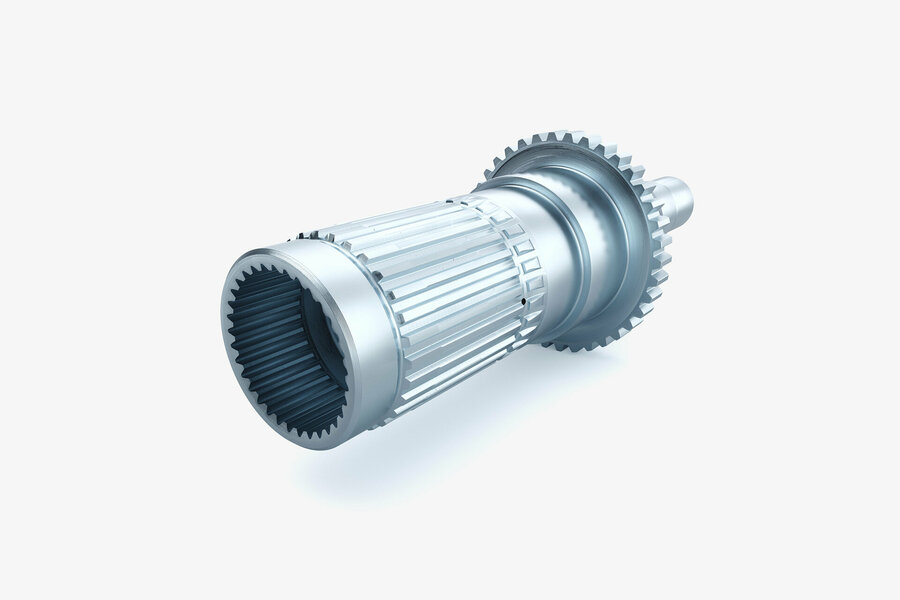

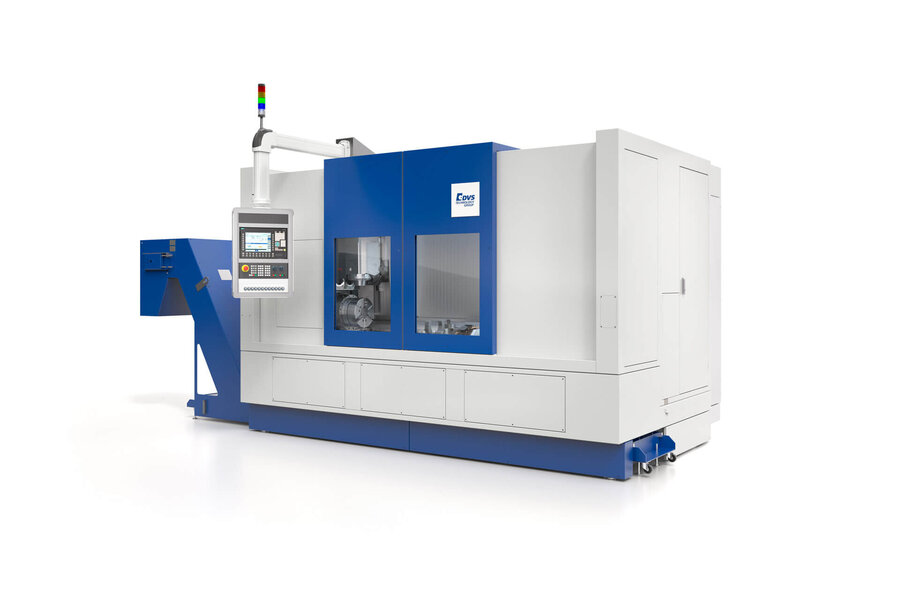

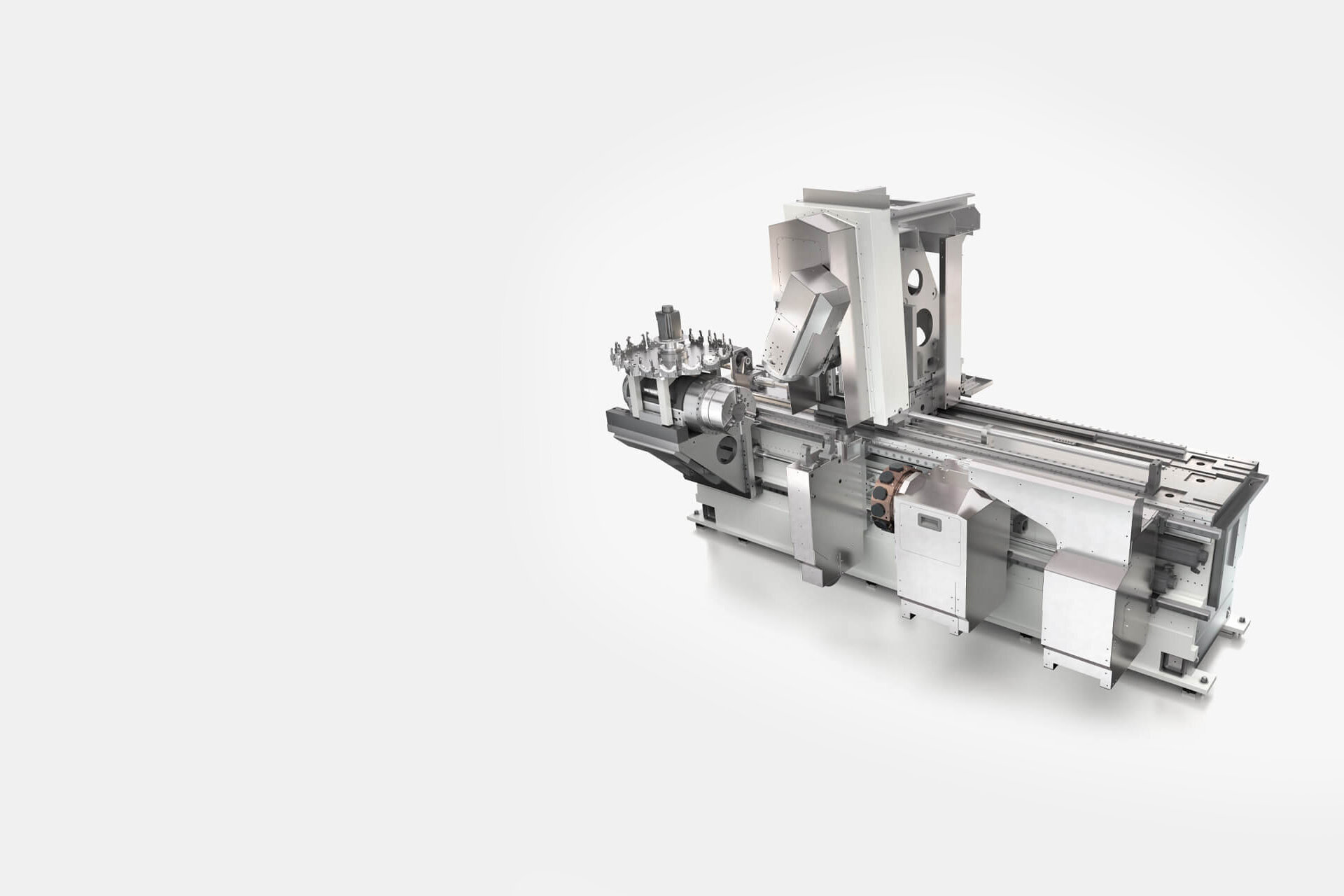

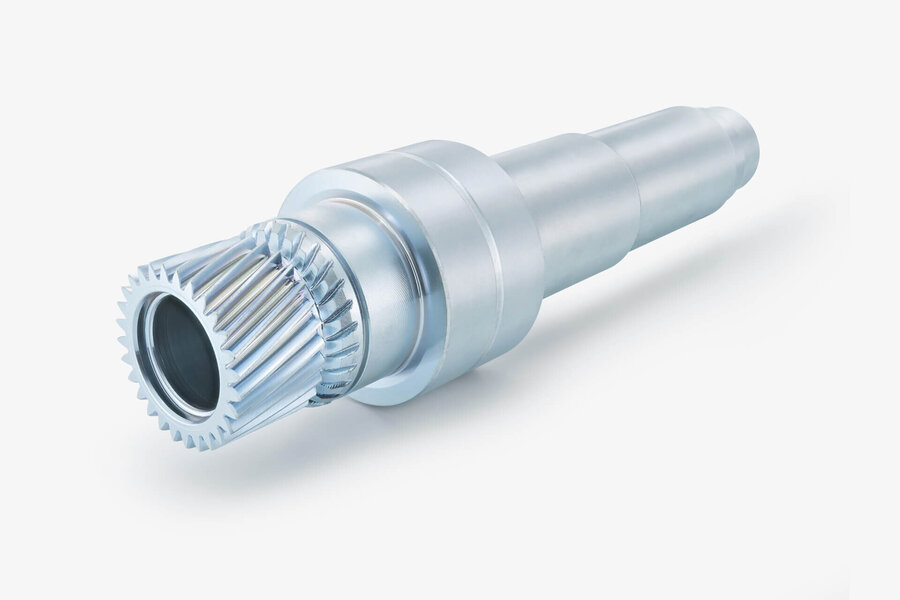

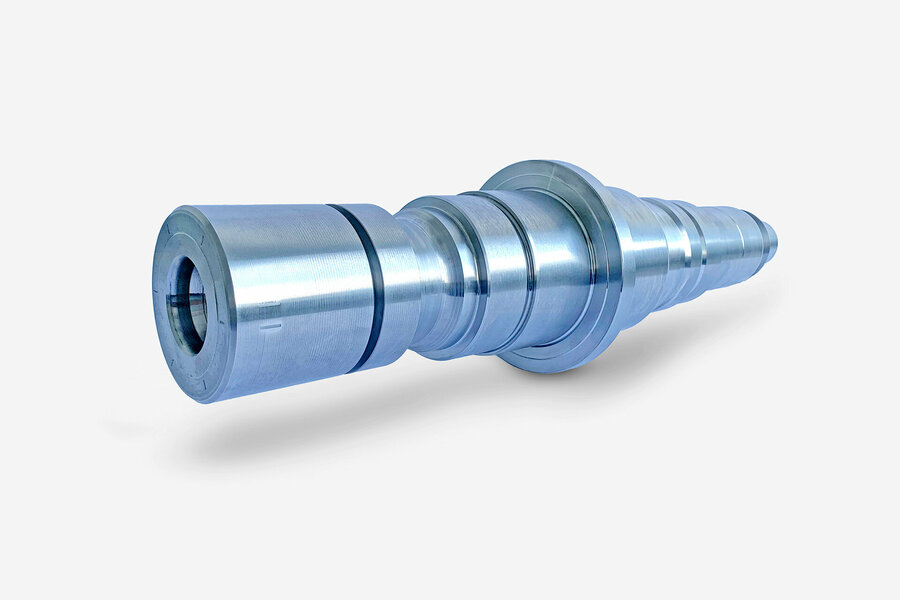

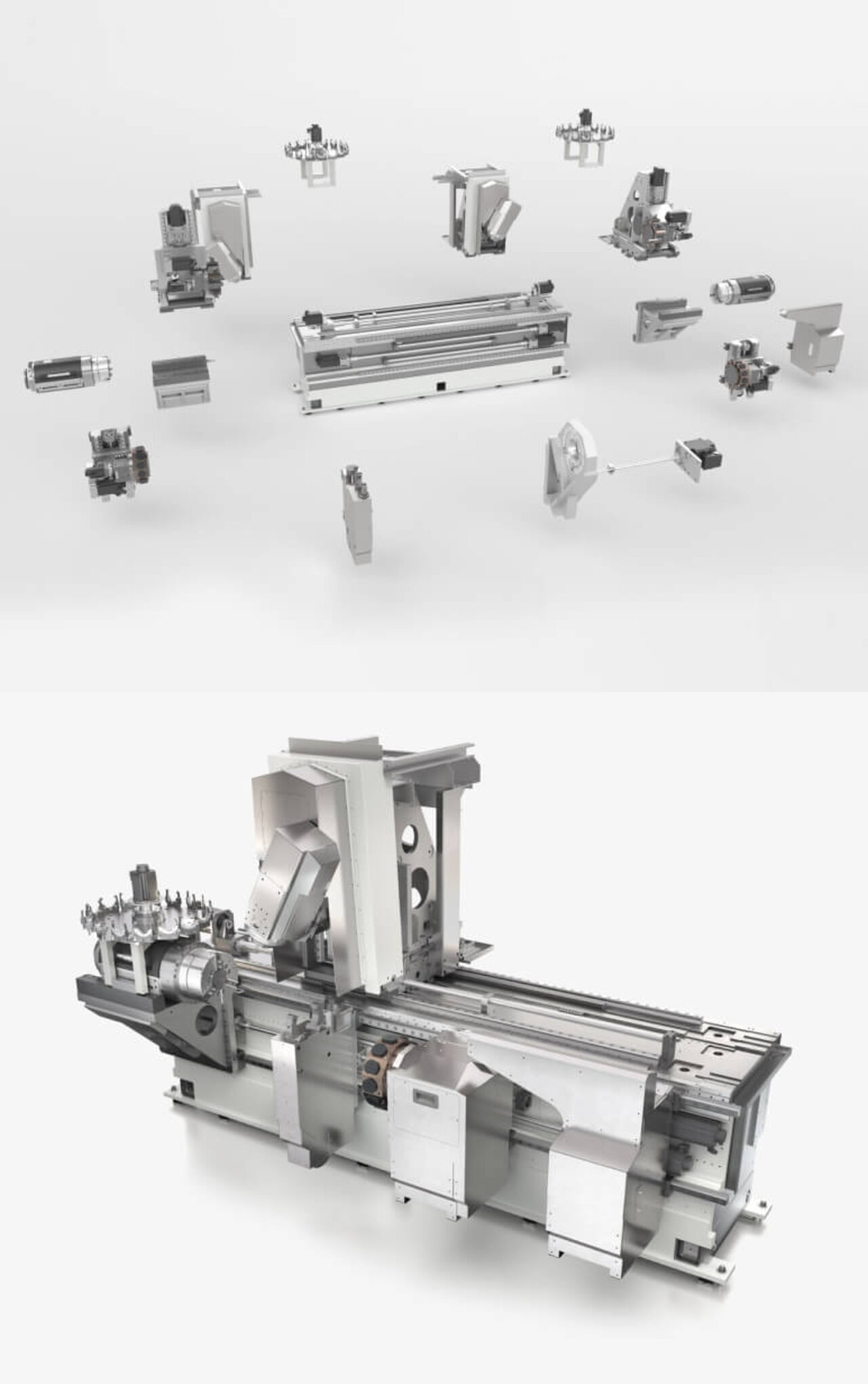

The modular system of the V300 allows configurations for multi-technology complete machining of splined shafts from the smallest to very large quantities. On the robust machine bed, you can turn, drill, mill, skive and hob with up to two work spindles and four tool carriers in just one machine. The center drive makes it possible to machine workpiece ends very precisely and quickly, and in combination with a second machine for machining the center of the workpiece, you can realise highly efficient, automated and yet easily convertible production cells for complete machining.
Do you have further, more specific questions about the V300 or the PITTLER machine program? Contact us so that we can work with you to find the right solution for you.
Turning, milling and gear cutting of shafts in only one set-up
Simultaneous machining of both shaft ends thanks to center drive technology
6-sided machining in main and counter spindle with up to four tool carriers
Automatic tool change in 7 seconds due to disc magazine

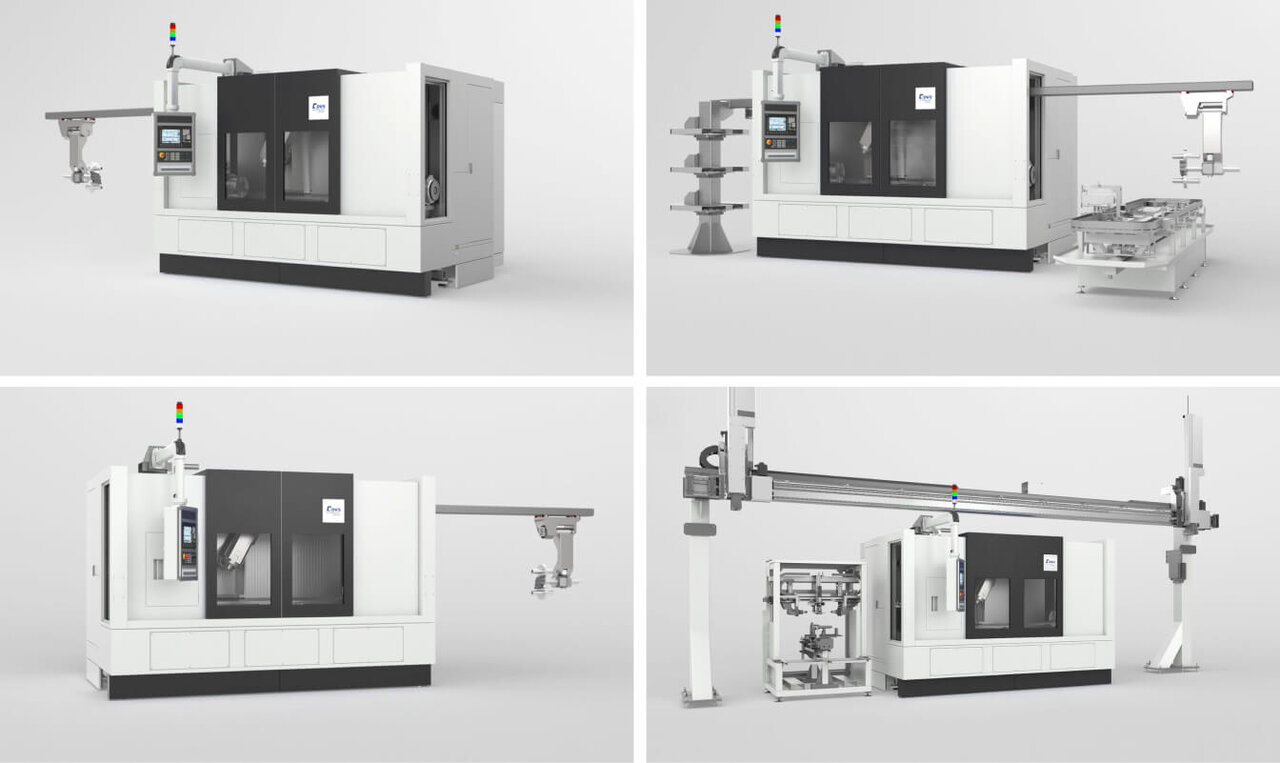

Integrated automation for fast workpiece change

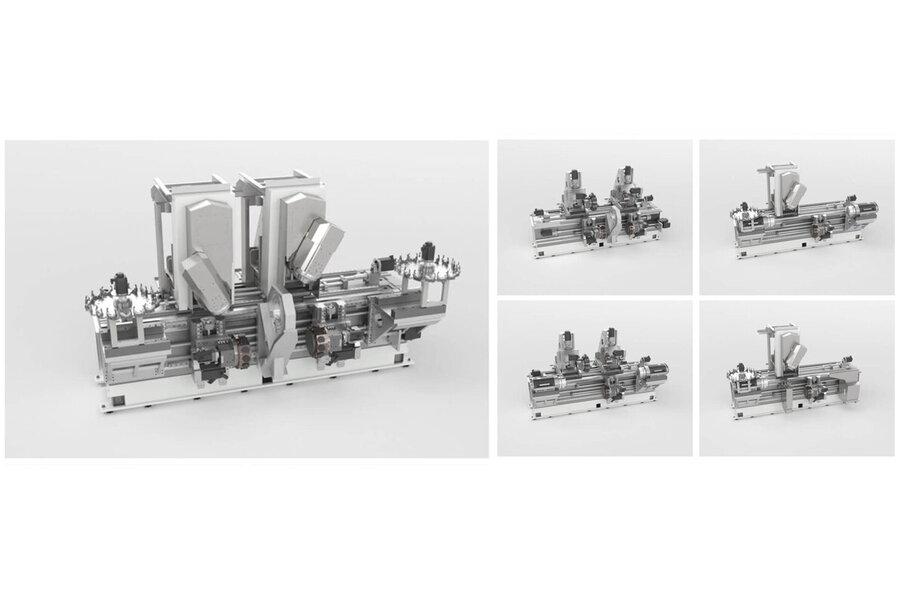

| Modul | V300 S | V300 CT | V300 MT | V300 O | V300 CM |
|---|---|---|---|---|---|
| Workpiece diameter max. in mm |
250 | 150 | 300 | 250 | 150 |
| Workpiece length max. in mm |
1500 | 700 | 2 x 500 | 2 x 500 | 700 |
| Technology | Turning (XZ / XYZ), 5x Milling (XYZB), Gear cutting, Automat. WZW | Turning (XZ / XYZ), 5x Milling (XYZB), Gear cutting, Automat. WZW | Turning (XZ / XYZ), 5x Milling (XYZB), Gear cutting, Automat. WZW | Turning (XZ / XYZ), 3x milling (XYZ) | Turning (XZ / XYZ),5x Milling (XYZB),Gear cutting, Automatic tool change |
| Drive | Spindle tailstock | Center drive | Main and counter spindle | Main and counter spindle | Center drive |
| max. S1 torque of the main drive [Nm] | 820 | 820 | 290 | 820 | 290 |
| Equipment | max. 3 slides, max. 2 XYZ slides if necessary steady rest integrated automation |
max. 4 slides, max. 2 if necessary XYZ-slide integrated automation |
max. 2 XYZB-milling slides with automat. tool change, max. 1 lower XZ rev. slide and if necessary steady rest integrated automation |
max. 3 slides, max. 2 XYZ slides if necessary, steady rest integrated automation |
max. 2 XYZB toothed slides with automatic tool change, max. 2lowerrev. slide integrated automation |
| Download |
*Different workpiece geometries require more individual machine designs. For this reason, the technical data given here serve as a guide, but may deviate from reality in individual cases.
