The PV series – The all-rounder for medium to large components
Our machinery The PV series – The all-rounder for medium to large components

Multi-technology machine configurations are possible thanks to the modular system of the PV series. Complete machining of rotary components for diameters from 350–5,000 mm.

The machine series is available as a single-spindle machine with two separate work areas, each with a tool carrier, or as a pendulum slide machine to achieve the best possible balance between non-productive and productive times.

The machine program is designed to enable all possible uses on the machine, i.e., turning, grinding, drilling, and milling. The machine can also be fitted with a Y-axis in order to be able to realize genuine PITTLER SKIVING.

Find out more about the machine’s high level of flexibility and equipment variance.

Do you have further, more specific questions about the PV series or the PITTLER machine program? Contact us so that we can work with you to find the right solution for you.

Pittler PV3 frontal
Highlights
01

Up to 6-axis machining: turning, grinding, milling, drilling, measuring, PITTLER Skiving possible with Y-axis

02

Automatic tool changeover with up to 150 tools

03

High level of flexibility and equipment variance

04

Generously dimensioned work area and good accessibility for optimal loadability

Multifunctional head

  • A wide range of tool carriers - the right head for every application

  • Special multi-function head with infinitely variable A-axis and B-axis as well as C3-axis possible

  • As single tool holders or with ram

  • All heads always possible in combination with PITTLER tool magazines

  • Tool turret with up to 12 tools

    • Variants

  • The right base machine for every application

  • Classic 1 spindle 1 tool carrier:
    2-axis machining

  • Reduced main time due to 2 tool carriers:
    4-axis machining

  • Simultaneous loading and unloading, due to 2 independent work areas

    • Headstock

  • Headstock with or without Y-axis

  • Hydraulic clamping possible

  • Various headstock options with up to 1,500 rpm or torque up to max. 42,000 N/m

    • Userfriendliness

  • Input masks specially adapted to customer requirements, e.g. for grinding, measuring - measuring to size, skiving, etc.

  • Option: Additional screen / monitor

    • Tool change

  • Automatic tool change with up to 150 tools

  • Different tool systems possible for rotary and rotary tools

  • Tool system: Capto C6 / C8 / C10 / HSK 63 / HSK 80 / HSK 100

    • Pittler PV3 frontal
    Video: Get inspired
    Workpieces and machinery
    Pittler PV630: Frontal
    Pittler PV3 frontal
    Pittler PV1250: Maschinenbett
    Pittler PV3: Achsenkopf
    Pittler PV3: Arbeitsraumspüldrüsen
    Pittler PV3: Multifunktionskopf und Werkzeugrevolver
    Pittler PV2000: Innenansicht

    PV series Technical specification*

    Series

    PV630

    PV1250

    PV1600

    PV2000

    Workpiece diameter max. in mm:

    630

    1250

    1600

    2000

    Technologies:

    turning, grinding, milling, drilling, measuring, PITTLER Skiving possible with Y-axis

    turning, grinding, milling, drilling, measuring, PITTLER Skiving possible with Y-axis

    turning, grinding, milling, drilling, measuring, PITTLER Skiving possible with Y-axis

    turning, grinding, milling, drilling, measuring, PITTLER Skiving possible with Y-axis

    Drive power up to:

    31

    122

    206

    206

    Torque at 100% ED up to:

    1375

    9100

    32800

    32800

    Max. speed:

    1500

    600

    420

    400

    *Different workpiece geometries require more individual machine designs. For this reason, the technical data given here serve as a guide, but may deviate from reality in individual cases.

    Christian-Rhiel-Pittler
    GOOD SOLUTIONS START WITH GOOD LISTENING Contact & Service

    Do you have any questions about our machine program or workpiece portfolio?

    Do you have questions about an individual application, would you like further information or a concrete offer?

    We are at your disposal at any time.
    YOU HAVE NOT FOUND THE RIGHT SOLUTION?

    Our machine portfolio

    Pittler SkiveLine: Front
    The compact all-rounder SkiveLine – Efficiently geared, completely machined

    Modern turning and milling center with flexible multifunctional head, tool magazine, and Y-axis. Original PITTLER SKIVING.
    pittler_pv2000-5000
    HIGHLY EFFICIENT, AUTOMATED, AND EASY TO RETOOL PV 2000-5000 – large rings made easy

    The modular system of the larger PV series enables configurations for multi-technology and complete machining of all rotary components with diameters from 2,000–5,000 mm.

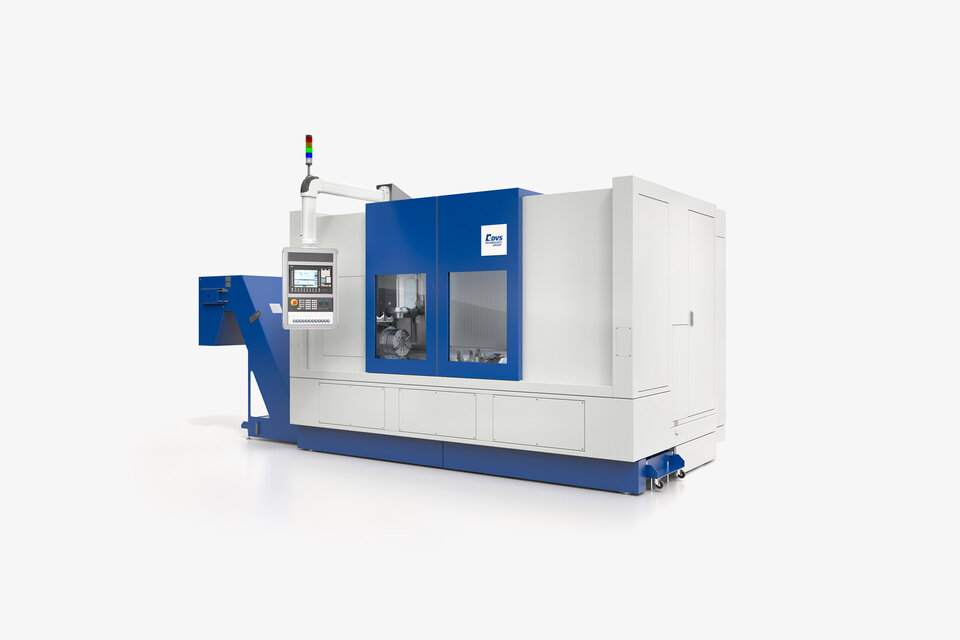

    pittler_v300
