Pittler PV 630-2000 全能選手
對於中等至
大型零件

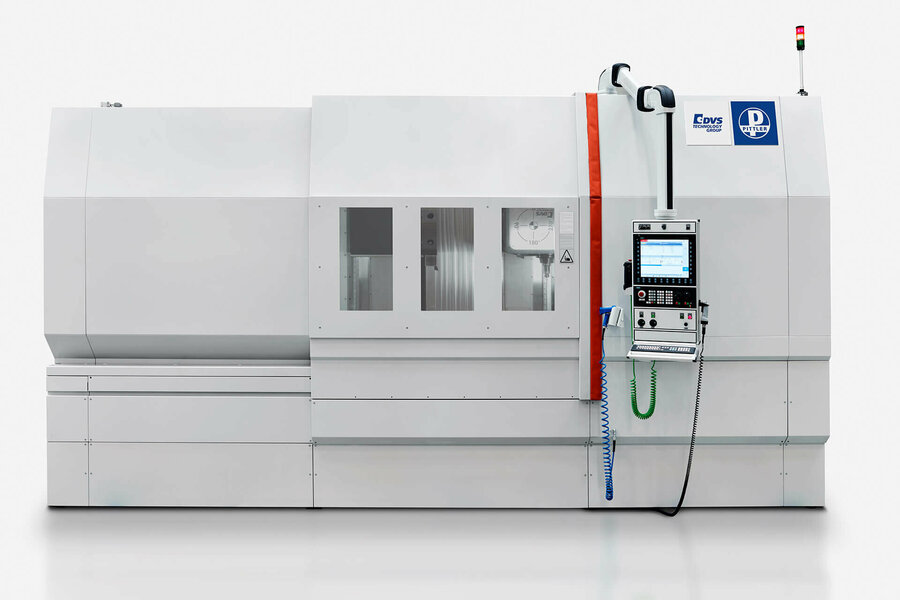

Flexibility, efficiency and precision are crucial for modern manufacturing processes. The PITTLER PV 630-2000 was specially developed for the complete machining of rotary components with diameters from 350 mm to 2,000 mm. Thanks to its modular concept, it offers individual configuration options - from the single-spindle machine to machines with two separate workspaces through to the highly productive pendulum slide machine.

Thanks to its versatile equipment options, the PV 630-2000 sets new standards in production.

  • Flexible machine configurations - single spindle, double work area or pendulum slide machine for optimum process sequences.
  • Multifunctional machining - turning, grinding, drilling, milling and optional PITTLER skiving with Y-axis.
  • Optimum balance between primary and secondary processing times - maximum productivity thanks to intelligent machine architecture.
  • Machining of large workpieces - Ideal for components with a diameter of up to 2,000 mm.
  • Expandable automation - Customizable solutions for seamless integration into existing production processes.

With the PITTLER PV 630-2000 you ensure maximum efficiency, reduced set-up times and a future-proof production solution for the highest demands.

Do you have further, more specific questions about the PV series or the PITTLER machine program? Contact us so that we can work with you to find the right solution for you.

要点
01

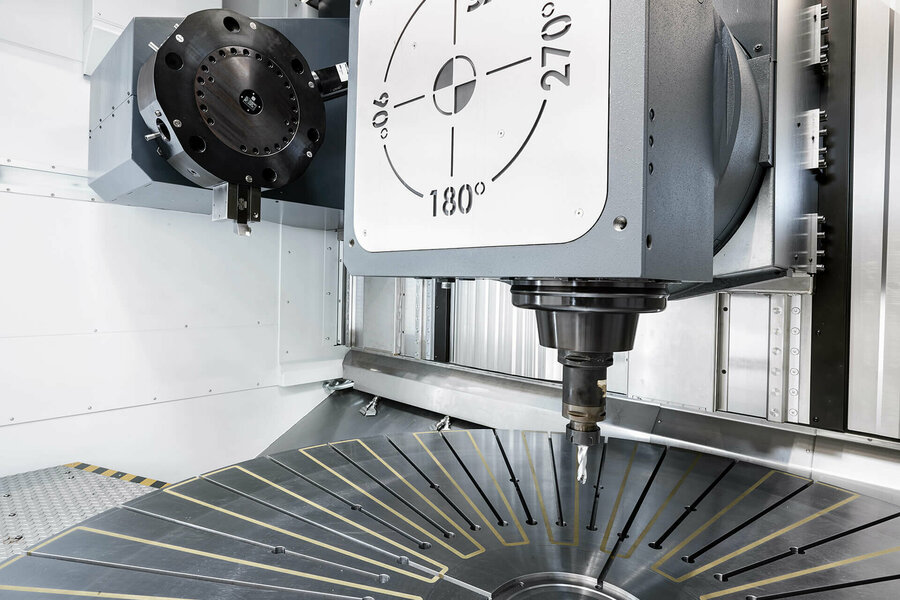

Up to 8-axis machining: turning, grinding, milling, drilling, measuring and optional PITTLER skiving with Y-axis for maximum process integration.

02

Automatic tool change with up to 150 tools: Fast tool changes for reduced non-productive times and flexible processing of different components.

03

Modular machine concept for maximum adaptability: Configurable as a single-spindle machine, double work area or pendulum slide machine for optimum productivity.

04

Spacious work area with optimum accessibility: Easy loading and efficient processing of large workpieces with diameters of up to 2,000 mm.

05

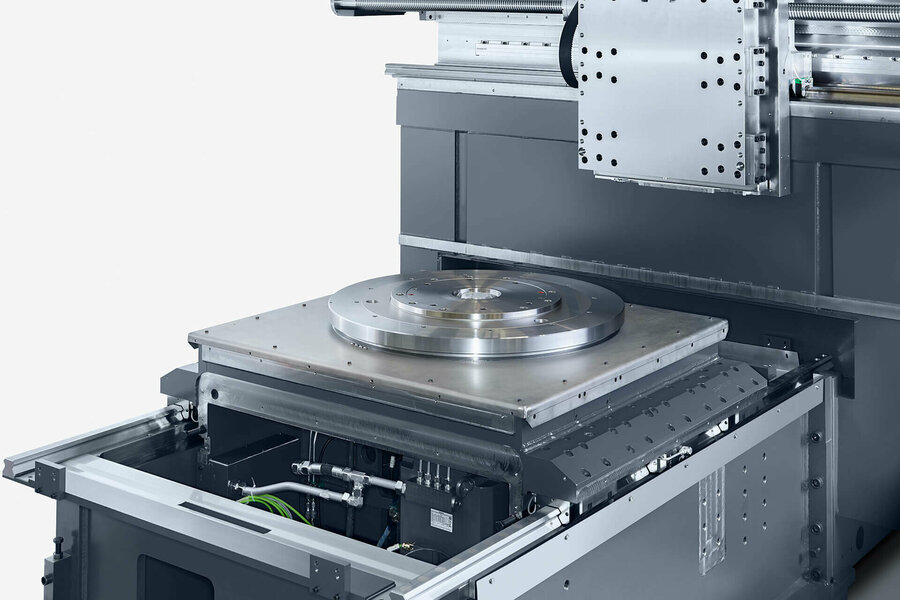

Optimum balance between main and auxiliary times: Pendulum slide option enables uninterrupted machining and higher machine availability.

06

High-performance drive for demanding materials: Powerful drives with up to 206 kW and torques of up to 32,800 Nm for precise and efficient machining.

07

Expandable automation solutions: Option to integrate external robot cells and automation systems for end-to-end process sequences.

08

Future-proof investment thanks to flexible configuration: customizable machine options enable cost-effective production and long-term

技术参数*

序列:

PV630

PV1250

PV1600

PV2000

最大工件直径mm:

630

1250

1600

2000

技术参数:

Y轴可进行车削、研磨、铣削、钻孔、测量、皮特勒刮削

Y轴可进行车削、研磨、铣削、钻孔、测量、皮特勒刮削

Y轴可进行车削、研磨、铣削、钻孔、测量、皮特勒刮削

Y轴可进行车削、研磨、铣削、钻孔、测量、皮特勒刮削

最大功率:

31

122

206

206

机床功率满载情况下的最大扭矩:

1375

9100

32800

32800

最大转速:

1500

600

420

400

*Different workpiece geometries require more individual machine designs. For this reason, the technical data given here serve as a guide, but may deviate from reality in individual cases.
