Our machines SkiveLine:
The compact
all-rounder

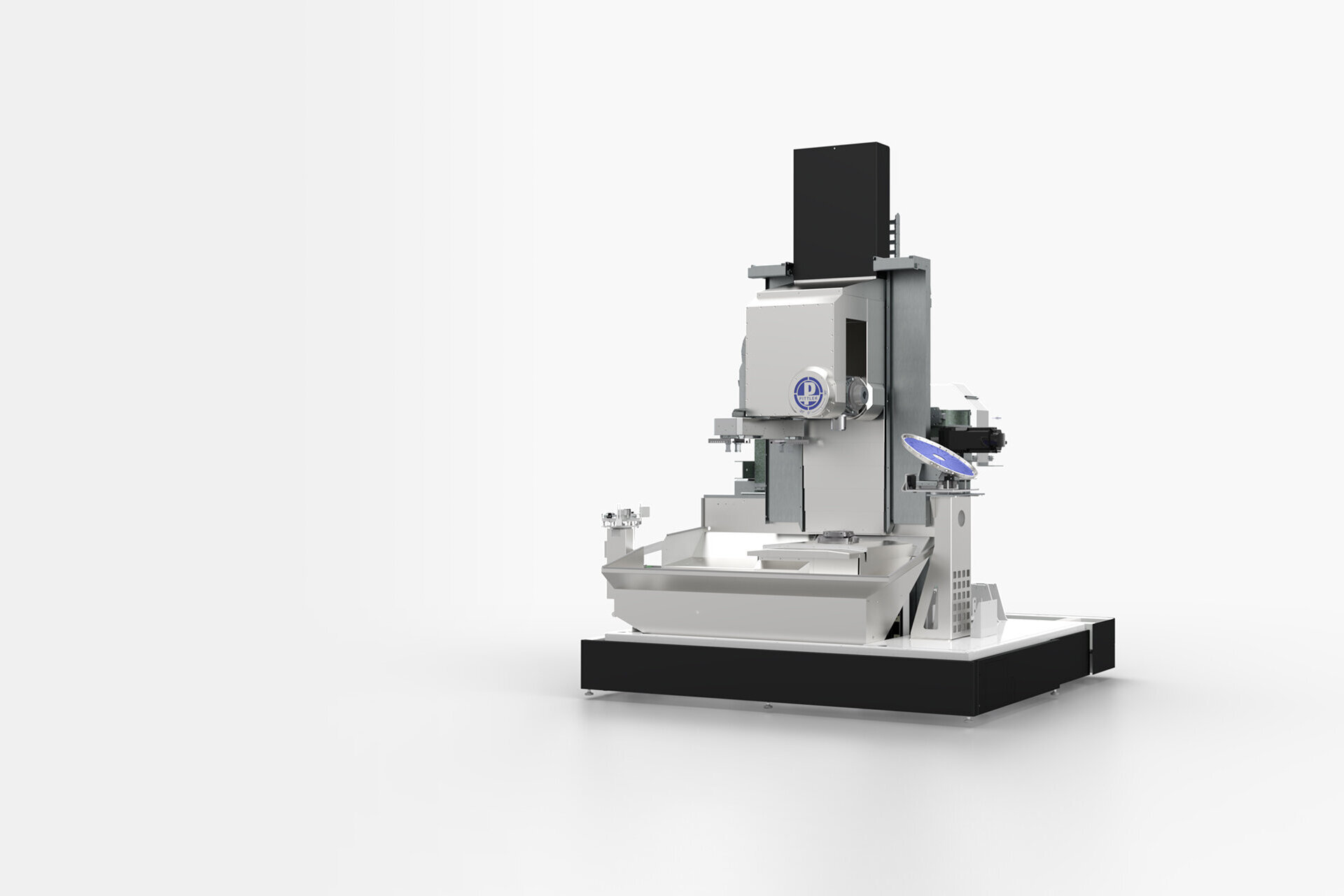

此款现代化车铣中心配有一个灵活的多功能头和一个Y轴,高效灵活地制造生产您的工件以及执行真正的PITTLER刮齿工艺。

十字滑架上选配的一个旋转上料器,以及自动化单元和工作区域之间的工件穿梭滑台实现了自动上下料功能。

作为进一步的设置,机床外侧的自动化系统能够对工件穿梭滑台进行上载和下载。

工作区设计有带手动门的机床外层,包括用于保护操作员的大尺寸安全窗。

要点

01

6-axis complete machining: internal and external skiving, turning, milling, drilling, deburring, pointing, backing and measuring in one machine - for maximum efficiency.

02

Flexible automation options: Choice of crane or manual loading, robot integration or shuttle loading for seamless production.

03

Fast tool change for reduced non-productive times: 16-position plate magazine ensures automated tool change in just 12 seconds.

04

Perfect process integration through machine pairing: Direct interaction between two SkiveLine machines enables efficient subsequent processing without additional reclamping.

05

Maximum precision through machining in a single clamping operation: Reduces reclamping errors and ensures maximum dimensional accuracy in the gearing.

06

Space-saving and ergonomic design: Compact design with large safety screen for optimum operator protection and easy monitoring of the production process.

07

Wide range of cooling options for optimum chip removal: emulsion, oil, compressed air or combined systems for extended tool life and improved component quality.

08

Industry 4.0-ready for smart manufacturing processes: Integrated sensor technology and digital interfaces enable predictive maintenance and efficient production control.

Pittler SkiveLine: Front
技术参数*

模数:

SkiveLine PV 315

SkiveLine PV 630

SkiveLine PV 1250

最大工件直径mm:

400

630

1250

最大工件高度mm:

400

400

800

技术参数:

6轴完整的内部和外部加工:车削、铣削、钻孔、滚压剥皮、去毛刺、测量、打磨、安装、冲击齿

6轴完整的内部和外部加工:车削、铣削、钻孔、滚压剥皮、去毛刺、测量、打磨、安装、冲击齿

6轴完整的内部和外部加工:车削、铣削、钻孔、滚压剥皮、去毛刺、测量、打磨、安装、冲击齿

驱动:

主轴箱(主轴C1和Y轴)、多功能头(B轴和C3轴)

主轴箱(主轴C1和Y轴)、多功能头(B轴和C3轴)

主轴箱(主轴C1和Y轴)、多功能头(B轴和C3轴)

最大 S1 – 主轴扭矩[Nm]:

425

1375

7440

设备:

横梁,包括多功能头和主轴箱,包括Y轴、刀库、旋转装载机、自动化单元

横梁,包括多功能头和主轴箱,包括Y轴、刀库

横梁,包括多功能头和主轴箱,包括Y轴、刀库

*不同工件的幾何形狀需要更多單獨的機器設計. 因此,此處給出的技術數據僅供參考,但在個別情況下可能與實際情況有所偏差.
