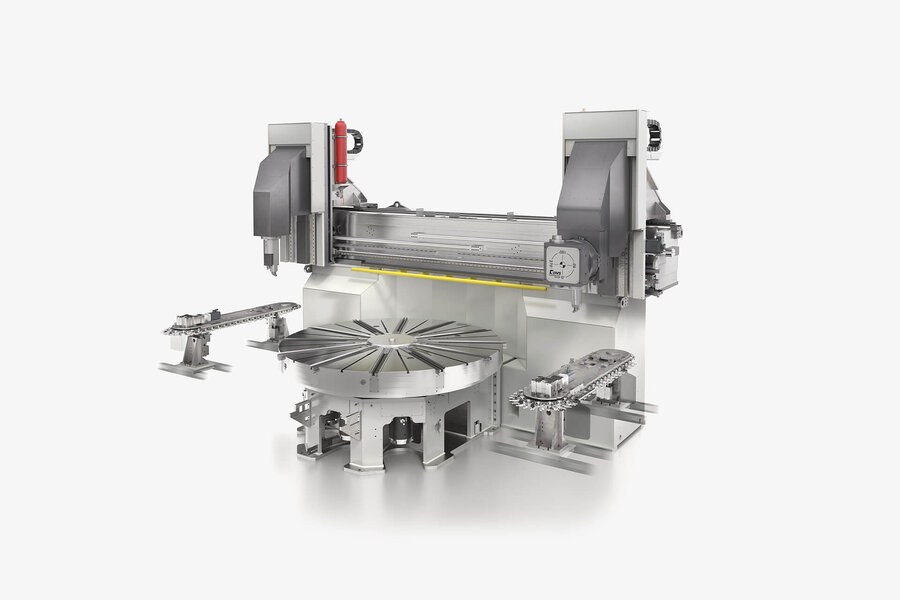

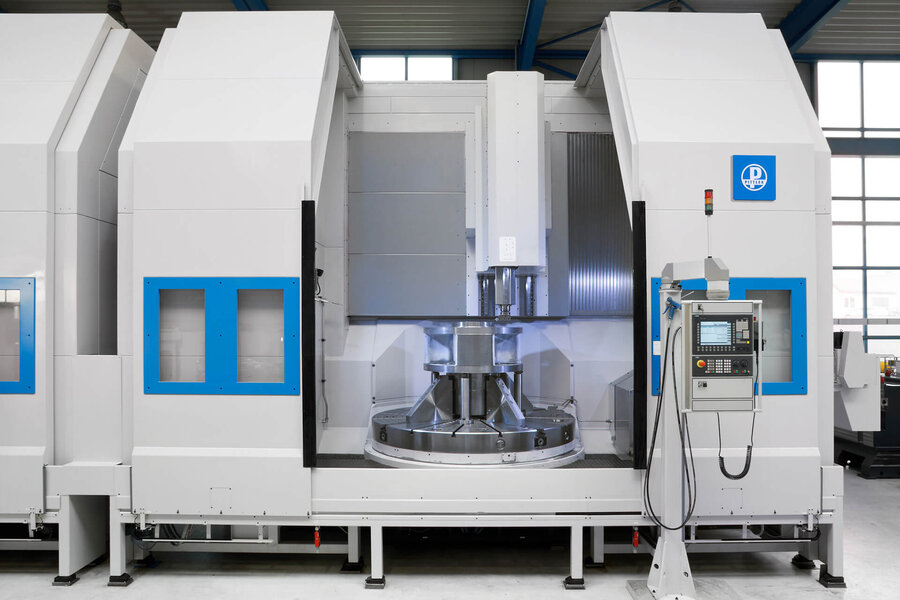

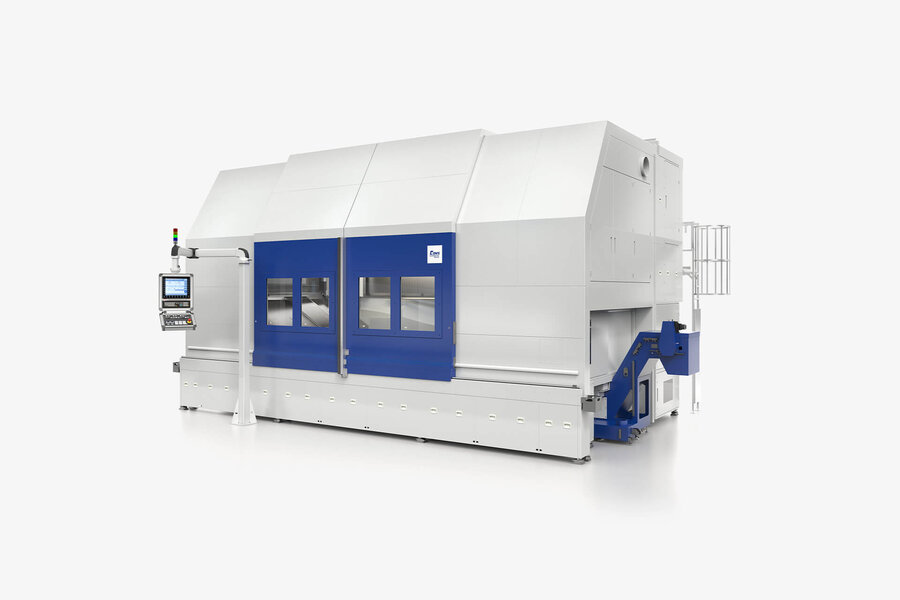

In modern manufacturing, precision, performance and flexibility are of crucial importance when machining large workpieces. The PITTLER PV 2000-4000 was specially developed to meet the requirements for machining workpieces with diameters of 2,000 to 4,000 mm and heights of up to 1,000 mm.
Main features of the PITTLER PV 2000-4000.
- Powerful headstocks: with S1 torques of up to 72,000 Nm and S1 powers of up to 300 kW, the machine enables infeeds of up to 20 mm at 1 mm feed.
- Versatile modular technology system: The machine supports various machining processes such as turning, drilling, milling, gear cutting and grinding. In addition, a B-axis enables the machining of complex geometries.
- Automatic tool change: Disk and chain magazines with up to 87 places ensure efficient and fast tool changes.
- Stable machine bed: The solid machine bed with continuous guide support ensures maximum rigidity and accuracy throughout the entire machining process.
With the PITTLER PV 2000-4000 you can optimize your production processes, increase productivity and secure a future-proof solution for machining large workpieces.
Do you have further, more specific questions about the PV series or the PITTLER machine program? Contact us so that we can work with you to find the right solution for you.
Powerful headstocks: S1 torques of up to 72,000 Nm and S1 outputs of up to 300 kW enable high infeeds and maximum cutting performance.
Versatile technology kit: turning, drilling, milling, gear cutting, grinding and B-axis for complex geometries - all in one machine.
Automatic tool change: Efficient plate and chain magazine change with up to 87 tool positions for minimum set-up times.
Extremely stable machine bed: Continuous guide support ensures maximum rigidity, precision and low-vibration machining.
Scalable machine configuration: Customizable headstock performance and the option of integrating two headstocks on one machine bed.
Processing of large workpieces: Ideal for components with diameters of 2,000 to 4,000 mm and heights of up to 1,000 mm.
Maximum flexibility in production: Modular machine concept enables individual adaptation to specific production requirements.
Optimized automation options: Seamless integration of external robotics and automation systems for efficient and productive manufacturing.
|
Modul |
PV 2000 |
PV 3000 |
PV 4000 |
|
Workpiece diameter max. in mm |
2400 |
3200 |
4000 |
|
Workpiece length max. in mm |
800 |
800 |
1000 |
|
Technology |
2-axis (XZ) turning and grinding, 4-axis (XZBC) milling, automatic tool change |
2-axis (XZ) turning and grinding, 4-axis (XZBC) milling, automatic tool change |
2-axis (XZ) turning and grinding, 4-axis (XZBC) milling, automatic tool change |
|
Drive |
Spindle tailstock |
Center drive |
Main and counter spindle |
|
max. S1 torque of the main drive [Nm] |
820 |
63000 |
72000 |
|
Equipment |
max. 2 supports with: Turret, fixed tool holder with automatic tool changer. B-axis multifunctional head with milling spindle and fixed tool holder with automatic tool change. WZW |
max. 2 supports with: Revolver, Fixed WZ shot with automat. WZW, B-axis multi-function head with milling spindle and fixed tool holder with automat. WZW |
max. 2 supports with: Turret, fixed tool holder with automatic tool changer. B-axis multifunctional head with milling spindle and fixed tool holder with automatic tool change. WZW |
|
Download |
*Different workpiece geometries require more individual machine designs. For this reason, the technical data given here serve as a guide, but may deviate from reality in individual cases.
