Pittler V300 The all-rounder
for toothed shafts

Increasing demands for precision, shorter machining times and economical processes require innovative manufacturing solutions. The PITTLER V300 combines turning, milling, drilling, skiving and gear cutting in a single machine, enabling the complete machining of shafts in just one clamping operation. The result: Minimized set-up times, reduced production costs and maximum process reliability.

Thanks to its modular design, the V300 can be perfectly adapted to individual production requirements.

  • Comprehensive machining options - Simultaneous machining of shaft ends with center drive as well as complete gear cutting in a single operation.
  • High productivity - Up to two work spindles and four tool carriers ensure fast and precise processes.
  • Efficient automation - Integrated solutions for fast workpiece feed and maximum production efficiency.
  • Space-optimized concept - Robust machine bed with well thought-out arrangement of components for compact and efficient production.

With the PITTLER V300 you can increase your production output, reduce costs and benefit from a flexible and future-proof manufacturing solution.

Do you have further, more specific questions about the V300 or the PITTLER machine program? Contact us so that we can work with you to find the right solution for you.

要点
01

Complete machining in one machine: turning, milling, drilling, gear skiving and gear cutting without reclamping for maximum precision and efficiency.

02

Simultaneous machining of both shaft ends: Center drive technology enables parallel production steps, reduces cycle times and significantly increases the quality of the reference surfaces for the clamping of subsequent processes.

03

Highly flexible 8-axis machining: Main and counter spindles with up to four tool carriers enable versatile manufacturing processes.

04

Ultra-fast tool change: Automatic tool change in just 7 seconds thanks to a high-performance disk magazine for reduced non-productive times.

05

Integrated automation solution: Automatic loading and unloading for efficient and consistent series production.

06

Modular machine concept: Customizable configurations for different workpiece sizes and production requirements.

07

Maximum process stability: Robust machine bed ensures low-vibration operation and maximum dimensional accuracy.

08

Industry 4.0-ready: Digital networking and predictive maintenance for smart and efficient production.

Technische Spezifikation* Maschinenserie V300

Modul

V300 S

V300 CT

V300 MT

V300 O

Workpiece diameter

max. in mm

250

150

300

250

Workpiece length

max. in mm

1500

700

Process dependent

Process dependent

Technology

Drehen (XZ / XYZ), 5x Fräsen (XYZB), Verzahnen, Automat. WZW

Drehen (XZ / XYZ), 5x Fräsen (XYZB), Verzahnen, Automat. WZW

Drehen (XZ / XYZ), 5x Fräsen (XYZB), Verzahnen, Automat. WZW

Drehen (XZ / XYZ), 3x-Fräsen (XYZ)

Drive

Spindle tailstock

Center drive

Main and counter spindle

Main and counter spindle

max. S1 torque of the main drive [Nm]

820

820

290

820

Equipment

max. 3 slides, max. 2 XYZ slides if necessary, steady rest if necessary, integrated automation

max. 4 slides, max. 2 XYZ slides if necessary, integrated automation

Max. 2 XYZB milling slides with automatic tool change, max. 1 lower XZ reversing slide and, if necessary, steady rest integrated automation

max. 3 slides, max. 2 XYZ slides if necessary, steady rest if necessary, integrated automation

Download

Data-Sheet-V300_S

Data-Sheet-V300_CT

Data-Sheet-V300_MT

Data-Sheet-V300_O

*不同工件的幾何形狀需要更多單獨的機器設計。因此,此處給出的技術數據僅供參考,但在個別情況下可能與實際情況有所偏差



Maschine Gallery

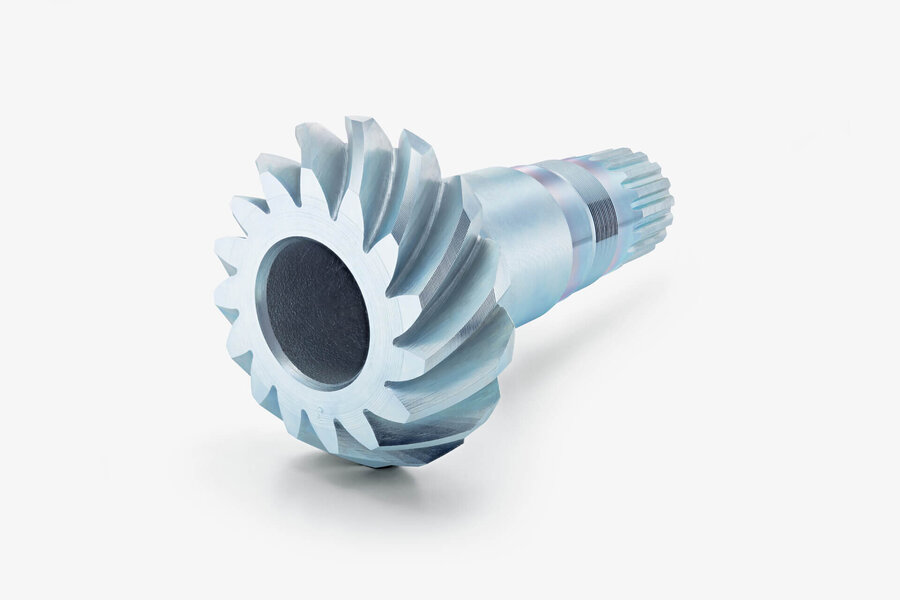

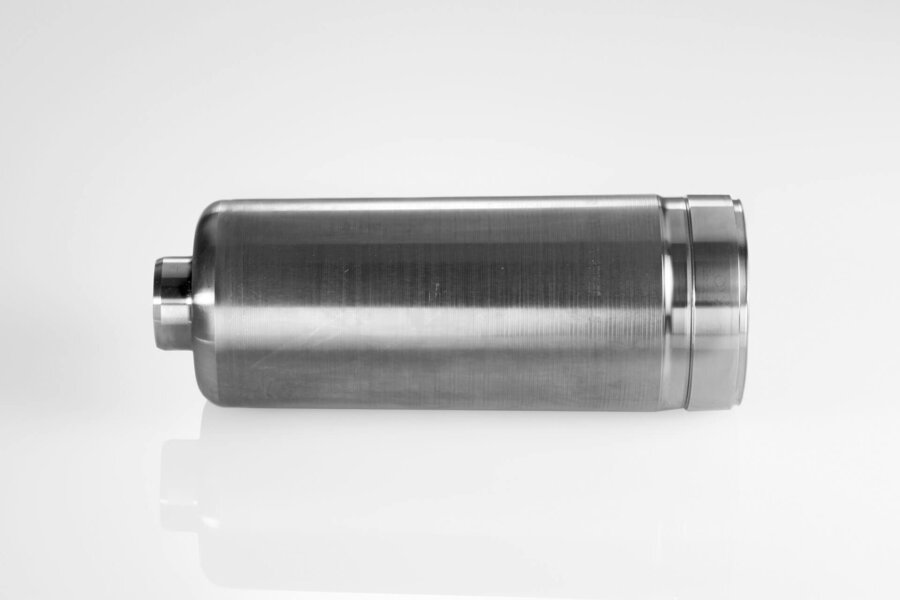

Workpieces
