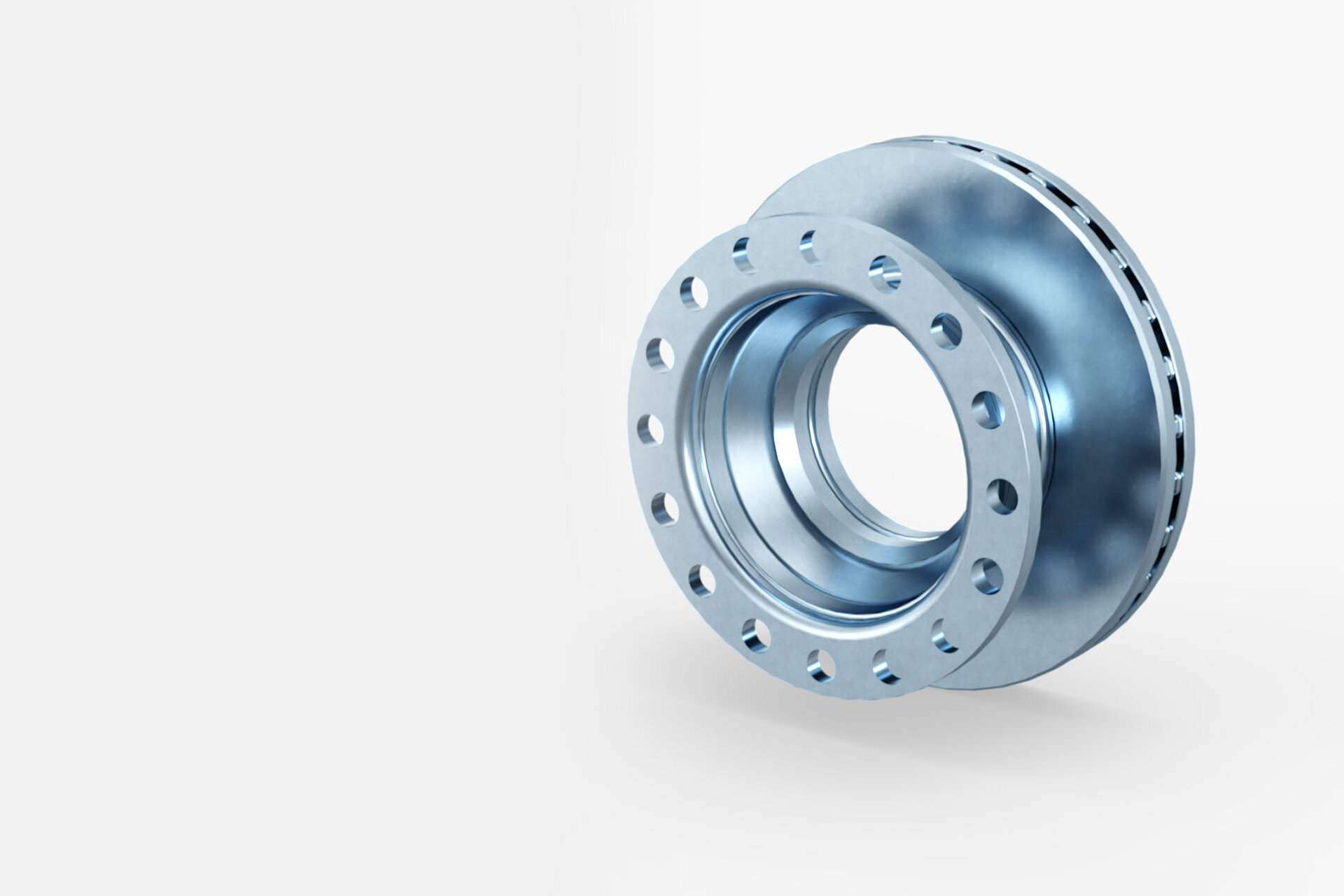

Brake disc
Workpieces Brake disc

Problem

  • Cast machining with fluctuating allowances, initial quality depends on the positioning of the cores
  • Tight tolerance for parallelism of the braking surfaces required for minimal run-in wear and good noise behavior
  • Machining in two set-ups is the state of the art today
  • Torque transfer with gears (spline)

Solution

  • Machining of OP10 and OP20 with oriented transfer
  • Machining of gears with driven tools
  • Provision of allowance
  • Taking account of residual stresses through optimized process sequence
  • Simultaneous machining of brake surfaces with NC lift-off holder
  • Optional post-process measurement
  • Custom automation solutions
  • Balance check of brake discs
  • Marking of workpieces
