Our machinery PVSL – The vertical pick-up lathe

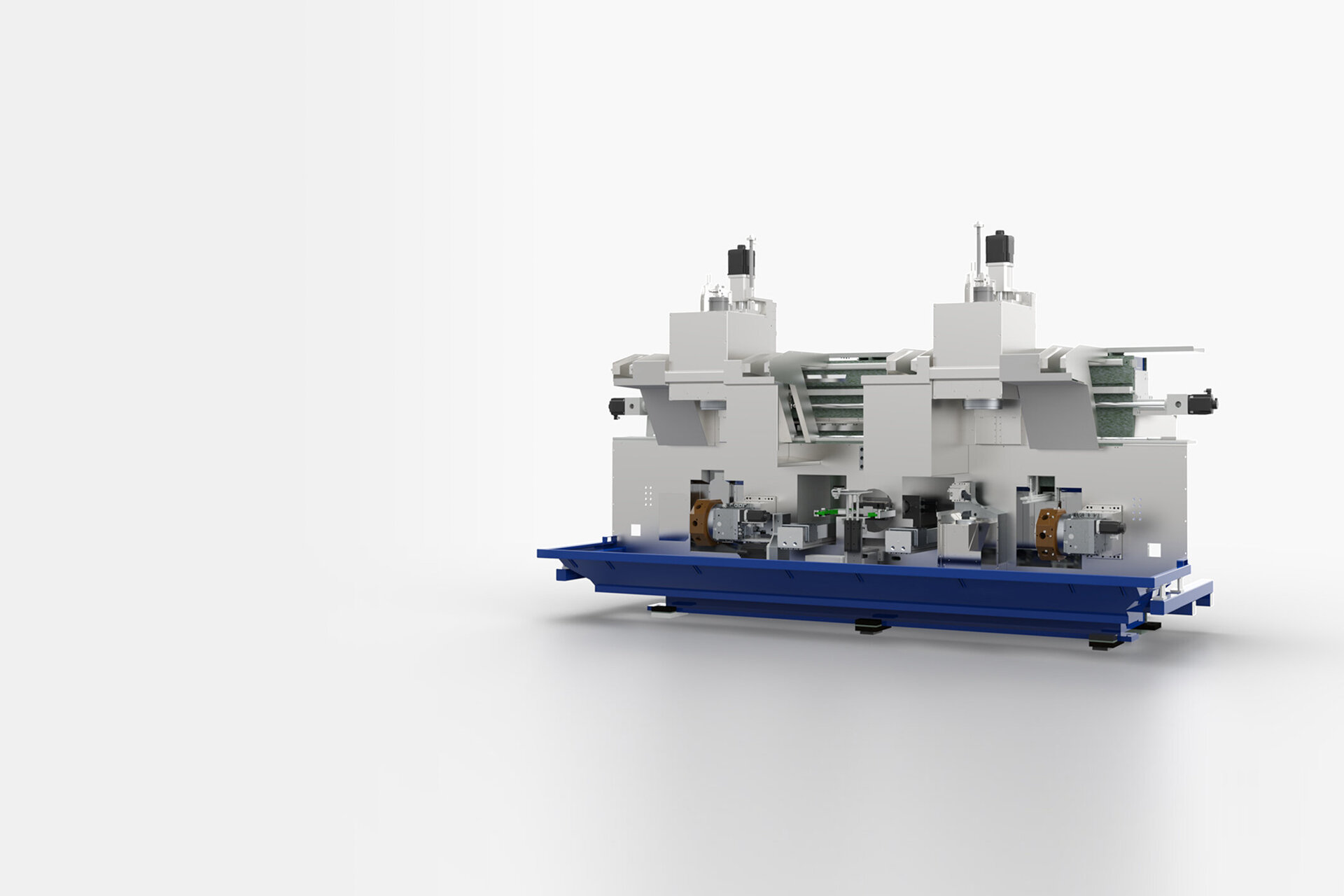

While conventional manufacturing solutions require two standalone machines for two-sided machining, the PVSL series combines two work areas including a central automation area in a single machine.

Optionally, we can also add external automation and robot cells for you.

The combination of short travel paths and the pick-up loading system guarantees short cycle times for the series production of complex components.

Do you have further, more specific questions about the PVSL or the PITTLER machine program? Contact us so that we can work with you to find the right solution for you.

Highlights

01

Parallel and turning machining

02

Flexible workpiece feed from the rear of the machine into the automation room

03

Loading via storage table for up to 45 minutes of standalone processing

04

Automatic part separation – no defined placing of the raw and finished parts necessary

05

NC lift-off holder for brake disc machining

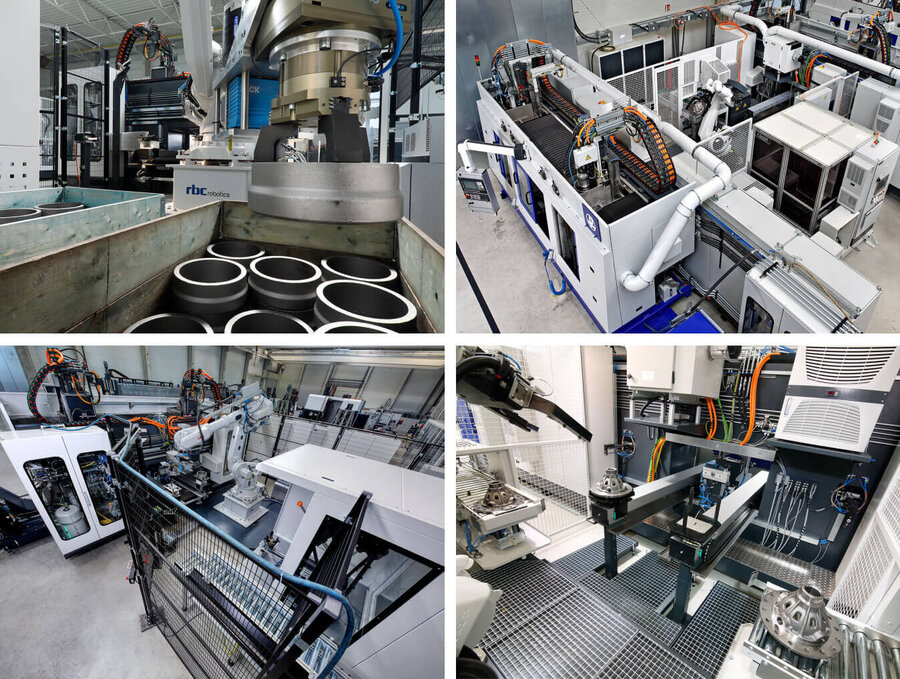

Automation

Flexible feeding of workpieces from the rear of the machine into the automation area, means very high degree of additional handling possibilities

Double pallets on the shuttle for parallel machining possible.

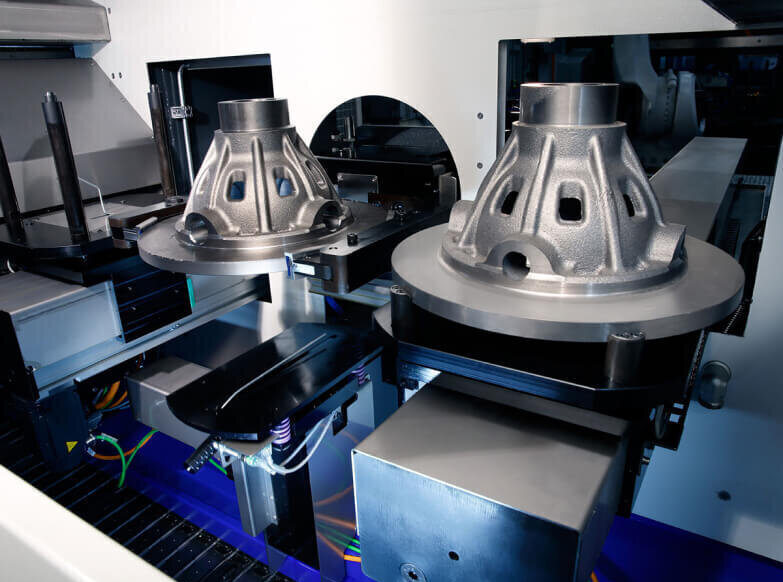

Lifting and turning station

Highly flexible and quickly set-up storage or turning station

Further applications such as, e.g. sensors or camera for orientation or, in the case of parallel machining, one probe for both spindles possible

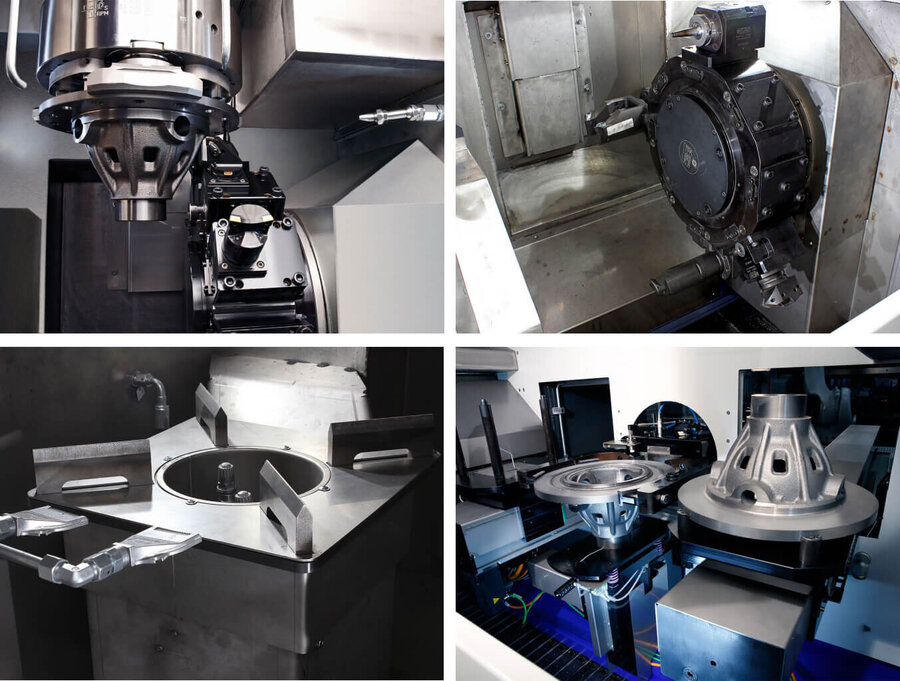

Workareas

Large work area for components up to 550mm

Single or double turret just as possible as an NC lift-off holder, deposit station, drilling spindle or multi-spindle drilling head.

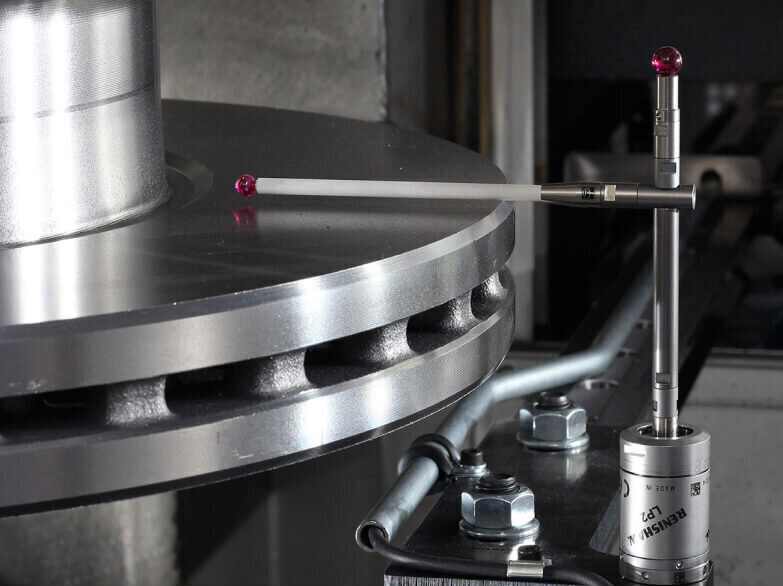

Measuring probe

One separate measuring probe possible per working area

Recessed in the machine bed and retracted into the work area via slide (perfect chip protection)

Video: Complete machining of a truck brake disc

Video: Bearbeitung eines LKW Differenzial-Gehäuses

Video: Machining of a truck differential housing

Technical specification*

Module:	PVSL3 / 2-2	PVSL N1 / 2-2- 2400	PVSL N1 / 2-2- 3000
Workpiece diameter max. in mm:	450	140	280
Workpiece height max. in mm:	280	80	80
Technologien: Technologies:	Drehen, Bohren, Fräsen	Drehen, Bohren, Fräsen	Drehen, Bohren, Fräsen
Max. S1 – Torque of the main drive [Nm]:	820	194	194

*Different workpiece geometries require more individual machine designs. For this reason, the technical data given here serve as a guide, but may deviate from reality in individual cases.

Contact & Service Good solutions start with listening closely

Do you have any questions about our machine program or workpiece portfolio?

Do you have questions about an individual application, would you like further information or a concrete offer?

We offer you individual solutions according to your specific application.

Christian Ballweg – Head of Sales – PITTLER T&S
