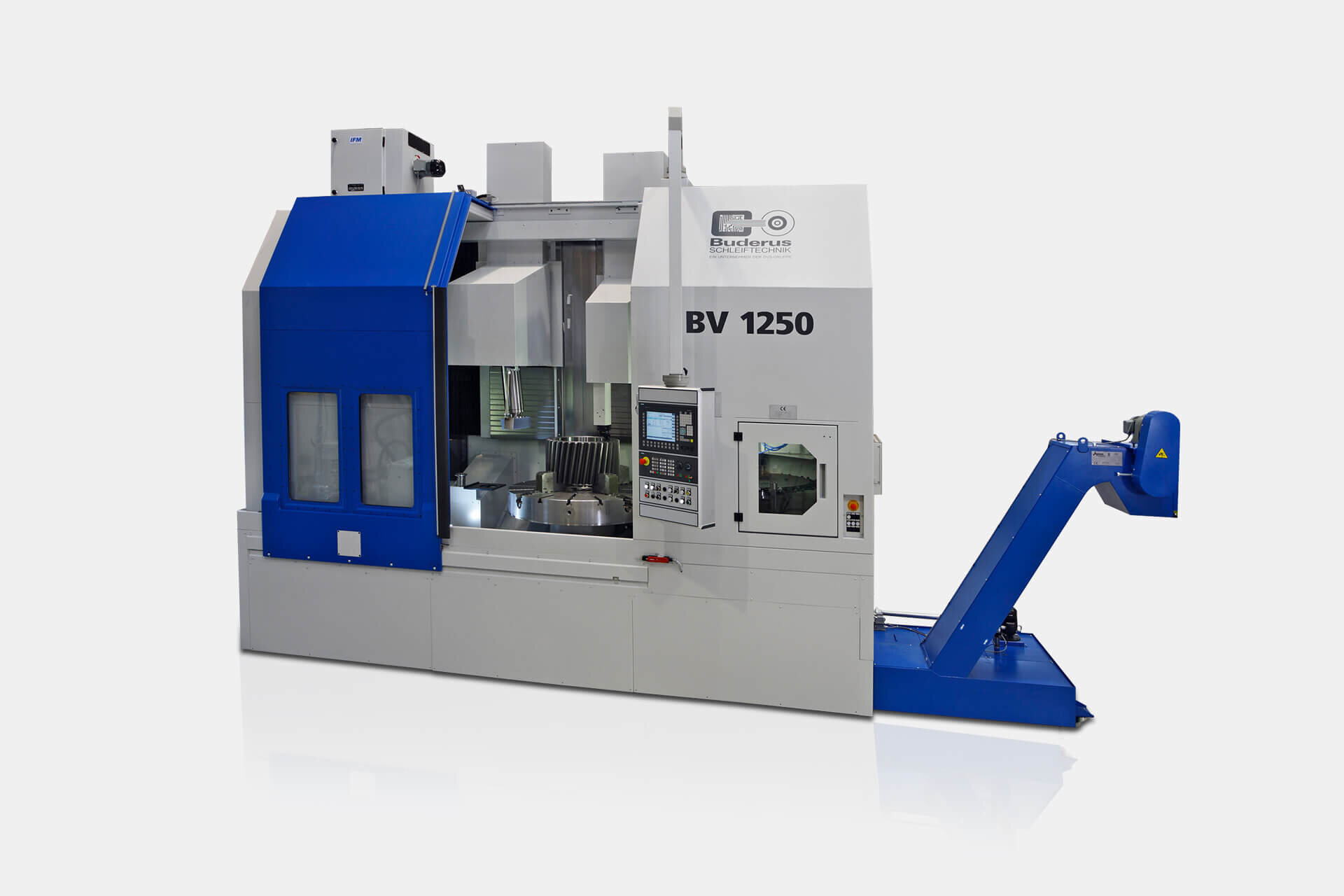

The BV Precision Grinding Machine sets new benchmarks in grinding performance and precision for workpieces with outer diameters up to Ø 4000 mm, enabling efficient grinding with the utmost accuracy. At its core lies a precision-crafted granite base, known for its exceptional thermal stability and rigidity. This fusion ensures outstanding static and dynamic robustness, while minimizing vibrations for exceptional grinding outcomes.

Equipped with two independent processing channels on the cross-slide within the working area, the BV Serie employs play-free roller recirculating linear guides on the step bed for guidance. This arrangement guarantees precise motion control. The X-axis guide rails are directly affixed to the machine bed, ensuring top-notch grinding accuracy. The slide guides are situated above the working area to guarantee optimal safety and results.

The central workpiece spindle, vertically roller-bearing mounted, enables precise workpiece positioning for ultra-precise grinding. Efficiency is maximized as workpieces can be processed in a single clamping.

Die zentrale Werkstücksspindel ist vertikal wälzgelagert und ermöglicht die präzise Positionierung der Werkstücke für hochgenaues Schleifen. Die Effizienz wird maximiert, da Werkstücke in einer Aufspannung bearbeitet werden können.

The first processing channel boasts a dedicated grinding spindle rotary table, carrying a specialized external grinding spindle for precise Curvic gear machining. The second processing channel features a grinding spindle rotary table accommodating both external and internal grinding spindles. The internal grinding spindle is equipped with an HSK 63 mount for swift exchange of grinding arbors and the functional touch probe for exact and pinpoint form and positional tolerance measurements, conducted directly within the machine.

The BV Series comes equipped with an intelligent exchange magazine, integrating both grinding arbors and the measuring unit. This magazine allows fully automated tool changes, substantially boosting productivity. Both cross-slides can be operated independently, facilitating the simultaneous processing of workpieces with specific diameters.

Engineered to meet the highest demands in precision and efficiency, the BV 1000 Grinding Machine features a robust granite machine bed, innovative grinding spindle rotary tables, and an intelligent tool changing system. It presents the optimal solution for demanding grinding tasks. The capacity for simultaneous processing, automated tool changes, and precise measurement techniques render the BV 1000 an indispensable investment for sophisticated manufacturing processes.

Complete machining in one clamping operation

As with all machines from BUDERUS Schleiftechnik, the large series also relies on complete machining of the workpieces in a single clamping operation. This eliminates non-productive times for loading and unloading several machines. This is particularly advantageous for large components, where the non-productive times sometimes approach the main times.

However, the biggest advantage of complete machining is the elimination of the reclamping process itself. Since the exact same center is never achieved when the component is reclamped, significantly lower tolerances can be achieved with complete machining, especially when the machined surfaces run in relation to each other.

Simultaneous machining through configuration with several cross slides

Thanks to the DVS modular principle, the workspaces of the BV hard machining center can be freely configured to perform as many machining operations as possible in one clamping. Equipped with several cross slides, not only complete but also simultaneous machining is possible.

The cross slides can be moved independently of each other in different directions. This enables the tools to carry out different machining tasks. For example, internal and external cylindrical grinding operations can be carried out simultaneously or combined simultaneously with turning operations. In this way, the machining time can be significantly reduced without compromising the achievable workpiece accuracy.

One to four cross slides run on the hard machining center in backlash-free, high-precision roller guides. These guides consist of a guide rail and the movable slides, which are equipped with roller bearings. This allows high rapid traverse speeds and very small feed movements without a stick slip effect, while maintaining maximum temperature stability without energy-intensive oil cooling. The slides are guided evenly along the entire stroke length in both axes, which means that inherently rigid cutting conditions are achieved across the entire working range.

Component handling on the BV series

Processing large components places particular demands on the machine system. The high workpiece weights often make it difficult to handle the components. For this reason, the BV series has a fixed vertical spindle on which the workpieces can be placed relatively easily using lifting equipment.

In addition to gripper systems which, combined with various workpiece conveyors, enable automatic loading of the machine, a two-spindle solution is also available. This allows processing to take place on one side of the machine while the other side is being set up. This virtually eliminates non-productive time for changing workpieces.

For medium-sized and large machines, the spindles are supported axially and radially separately in precision roller bearings. This ensures high concentricity and axial run-out accuracy even with high weights and asymmetrical load distribution.

Summary

Overall, the BV is a machine for large workpieces that combines both flexibility and productivity by consistently utilizing the DVS modular principle. This means that the machine can be specially adapted to your application or your range of components. With the large number of possible variants, your machine is sure to be included.

With the “BV Series 500-3000”, we offer you another innovative and reliable technology for the hard fine machining of tomorrow. The development process focused on maximum flexibility, resource-saving production and sustainable management. The compact and modular design enables an individually configurable work area, optimum accessibility and minimal changeover times. The compact design in combination with the very high rigidity offers high-precision, very economical, flexible production.

Highlights
01

The unique, sustainable machine bed made of natural granite ensures a high degree of process stability thanks to maximum rigidity, vibration damping, and optimal thermal properties.

02

Swivel axis (B-axis) under the grinding spindle automatically adjustable with hydraulic locking and "Hirth toothing", swing angle ±90°.

03

Rotatable dressing spindle enables a wide range of dressing options

04

Simultaneous machining through configuration with several cross slides

05

Complete machining in one clamping

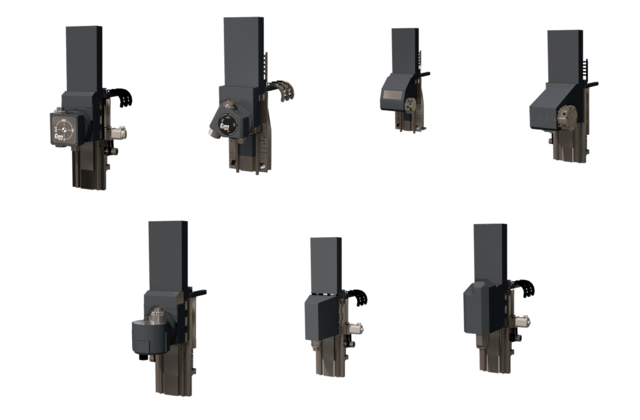

Multifunctional head

  • A wide range of tool carriers - the right head for every application

  • Special multi-function head with infinitely variable A-axis and B-axis as well as C3-axis possible

  • As single tool holders or with ram

  • Tool turret with up to 12 tools

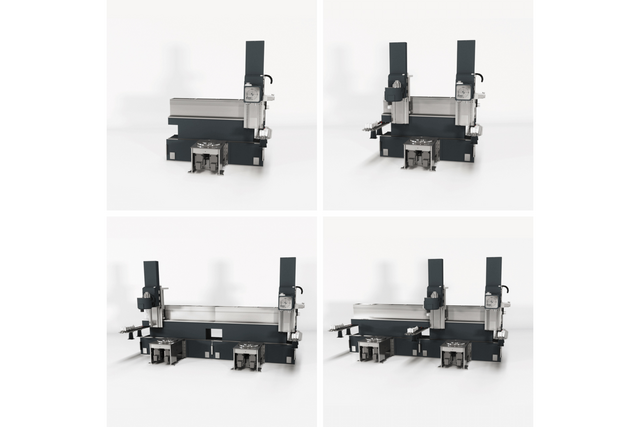

  • Variants

  • The right base machine for every application

  • Classic 1 spindle 1 tool carrier:
    2-axis machining

  • Reduced main time due to 2 tool carriers:
    4-axis machining

  • Simultaneous loading and unloading, due to 2 independent work areas

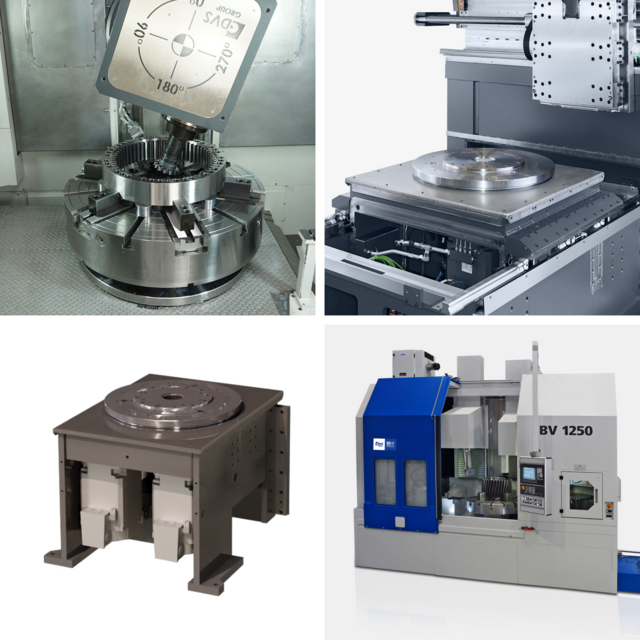

  • Headstock

  • Headstock with or without Y-axis

  • Hydraulic clamping possible

  • Various headstock options with up to 1,500 rpm or torque up to max. 42,000 N/m

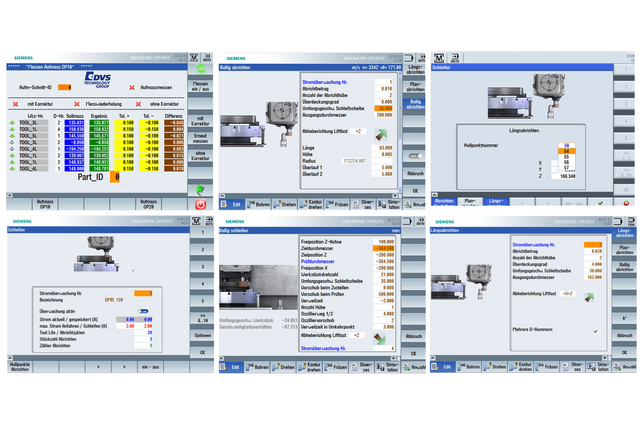

  • Bedienerfreundlichkeit

  • Input masks specially adapted to customer requirements, e.g. for grinding, measuring - measuring to size, skiving, etc.

  • Option: Additional screen / monitor

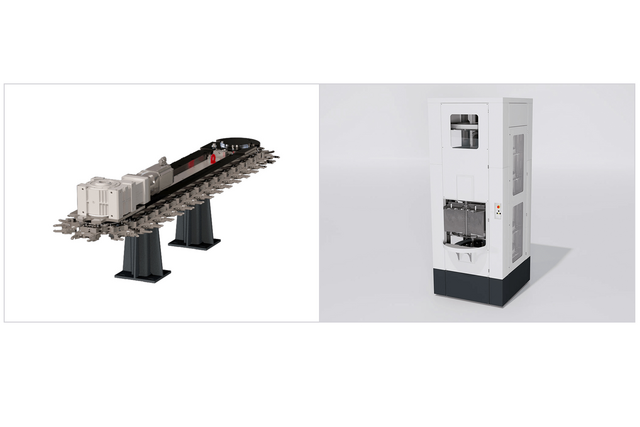

  • Tool change

  • Automatic tool change with up to 150 tools

  • Different tool systems possible for rotary and rotary tools

  • Tool system: Capto C6 / C8 / C10 / HSK 63 / HSK 80 / HSK 100

  • BV 2500: Get inspired
    Technical specification*


    BV 400

    BV 630

    BV 800

    BV 1250

    BV 1600

    BV 3000

    BV 4000

    max. workpiece Ø in mm

    400

    630

    800

    1.250

    1.600

    3.000

    4.000

    max. workpiece length:

    500

    500

    500

    500

    500

    500

    500

    max. workpiece weight in kg.:

    500

    1.500

    2.500

    5.000

    5.000

    10.000

    25.000

    installed power workspindle in kW:

    42

    78

    78

    104

    104

    104

    256

    No. of workpiece spindles

    1 - 2

    1 - 2

    1 - 2

    1 - 2

    1 - 2

    1

    1

    max. speed X-axis in m/min

    60

    60

    40

    40

    40

    40

    40

    max. speed Z-axis in m/min

    30

    30

    24

    24

    24

    24

    24

    Controller

    Sinumerik 840D

    Sinumerik 840D

    Sinumerik 840D

    Sinumerik 840D

    Sinumerik 840D

    Sinumerik 840D

    Sinumerik 840D

    Footprint basic machine

    4.000 x 2.600

    4.300 x 2.600

    4.700 x 2.600

    5.200 x 3.200

    5.600 x 3.200

    6.400 x 3.800

    9.600 x 7.000

    Weight in t

    15

    20

    25

    30

    35

    40

    120

    *Different workpiece geometries require more individual machine designs. For this reason, the technical data given here serve as a guide, but may deviate from reality in individual cases.
