Buderus uFlex Multiple options
thanks to
multiple functions

The uFlex is a compact, inclined hard-fine machining center with a compound slide in the upper area, which is fitted with a swiveling multifunction rotary turret or with static tools.

The multifunctional head can be equipped with various tools and measuring devices as needed.

The lower left area of the machine features a tool spindle. A manually adjustable tailstock is located opposite the tool spindle in the Z direction.

The machine can be loaded in various ways:

  • Manual loading
  • Robot cell
  • DVS shaft automation
  • Ovalband
  • Highway connection

Highlights

01

Combination of hard turning and grinding in one machine

02

Easy operation and programming through Ucee

03

Compact and modern machine design

04

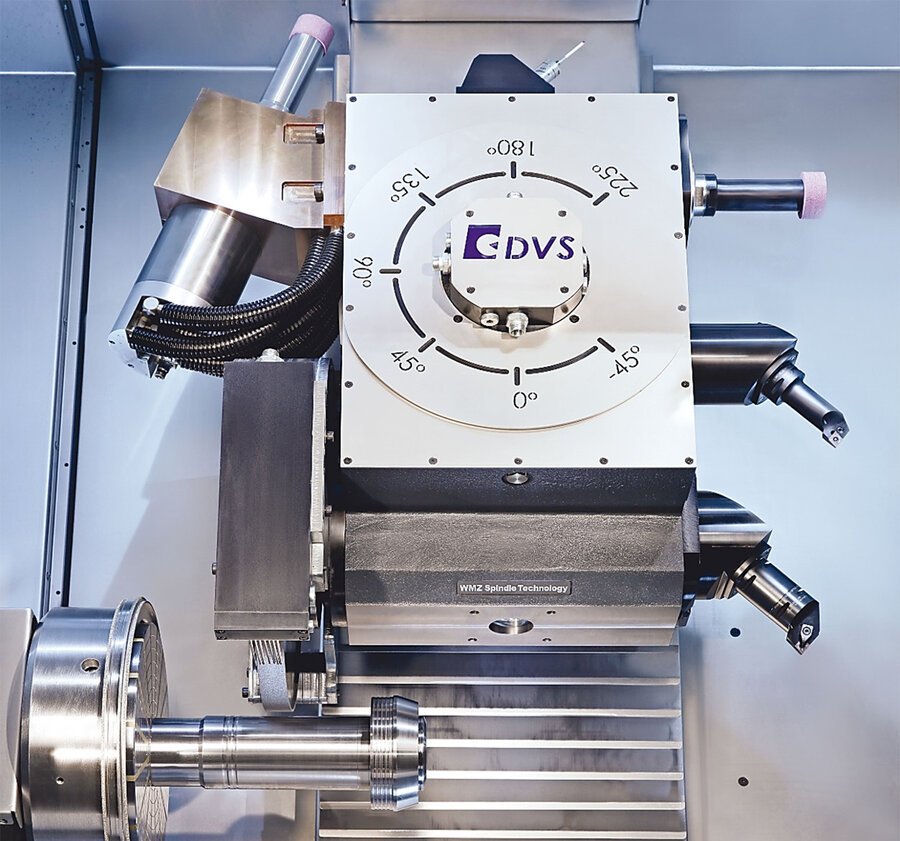

The Buderus multifunctional head and the NS axis, which can be swiveled continuously up to 270°, allow the individual and flexible integration of different technologies.

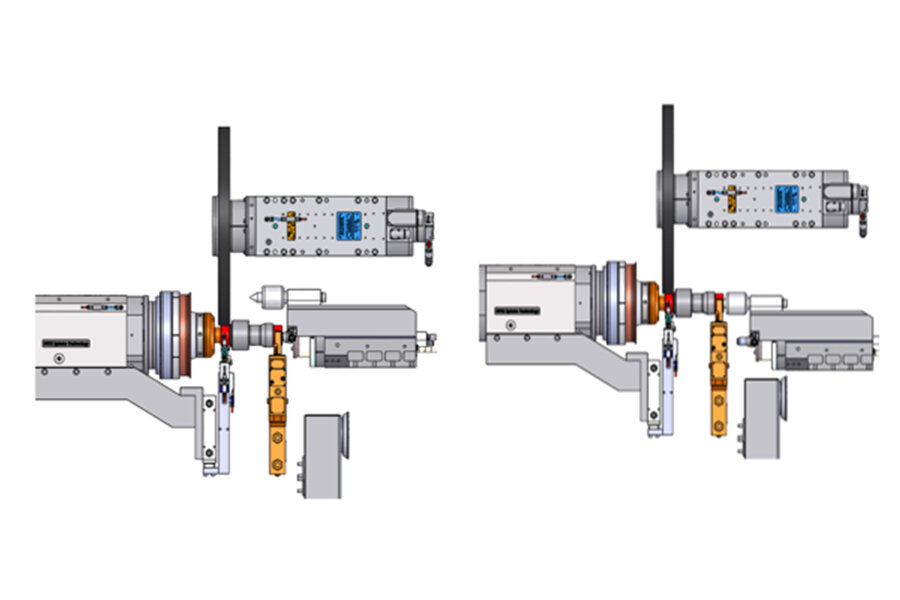

Hard turning & grinding

  • Free configuration of multifunctional head (MFH)
  • Up to three grinding spindles are possible
  • The components can be manufactured in one clamping

  • Easy operation

  • Cycle-based control
  • Machining programmes can be created without in-depth programming knowledge
  • Machine can be integrated into digitalised production networks via Ethernet
  • Transfer of programmes via USB
  • Workpiece management for quick access to archived machining sequences
    Programming simulation

  • High flexibility

  • Tailstock and steady rest adaptable via dovetail guide
  • Quick exchange of chuck due to bayonet lock
  • Easy and fast exchange of turning tools through Capto clamping
  • Internal and external machining in one clamping
  • In-process measuring system adaptable via dovetail guide
  • Dressing device available in different versions

  • Compact & modern machine design

  • 7.5m² floor space for Uflex 800 and 8.5m² for Uflex 1500
  • Integrated extraction and cooling
  • The slanted machine front allows user-friendly loading
  • Loading by crane possible

  • Technical Specification*


    uFlex 800

    uFlex 1500

    WORKPIECE



    Workpiece diameter max. in mm:

    350 mm

    350 mm

    Workpiece length max. in mm:

    650 mm

    1000 mm

    COMPOUND SLIDES



    X-axis travel (mm):

    500

    500

    Z-axis travel (mm):

    800

    1500

    MULTIFUNCTIONAL HEAD



    Swivel range (°)

    von -45 ° bis 225 °

    von -45 ° bis 225 °

    Positioning accuracy (°)

    0,003

    0,003

    Repeatability (´´)

    < 11

    < 11

    Resolution (°)

    0,0001

    0,0001



    Connected load of machine:

    40-60 kW

    40-60 kW

    Machine weight:

    7.000 kg

    8.000 kg




    Multifunction Head*

    Individual machine data:

    uFlex 800

    uFlex 1500

    Swiveling Range [°]:

    - 45 up to + 225

    - 45 up to + 225

    Positioning Accuracy [°]:

    0,001

    0,001

    Repetition Accuracy [”]:

    < 3.6

    < 3.6

    Resolution [°]:

    0,001

    0,001

    *Different workpiece geometries require more individual machine designs. For this reason, the technical data given here serve as a guide, but may deviate from reality in individual cases.
