235V – Flexible shaft and center drive machines

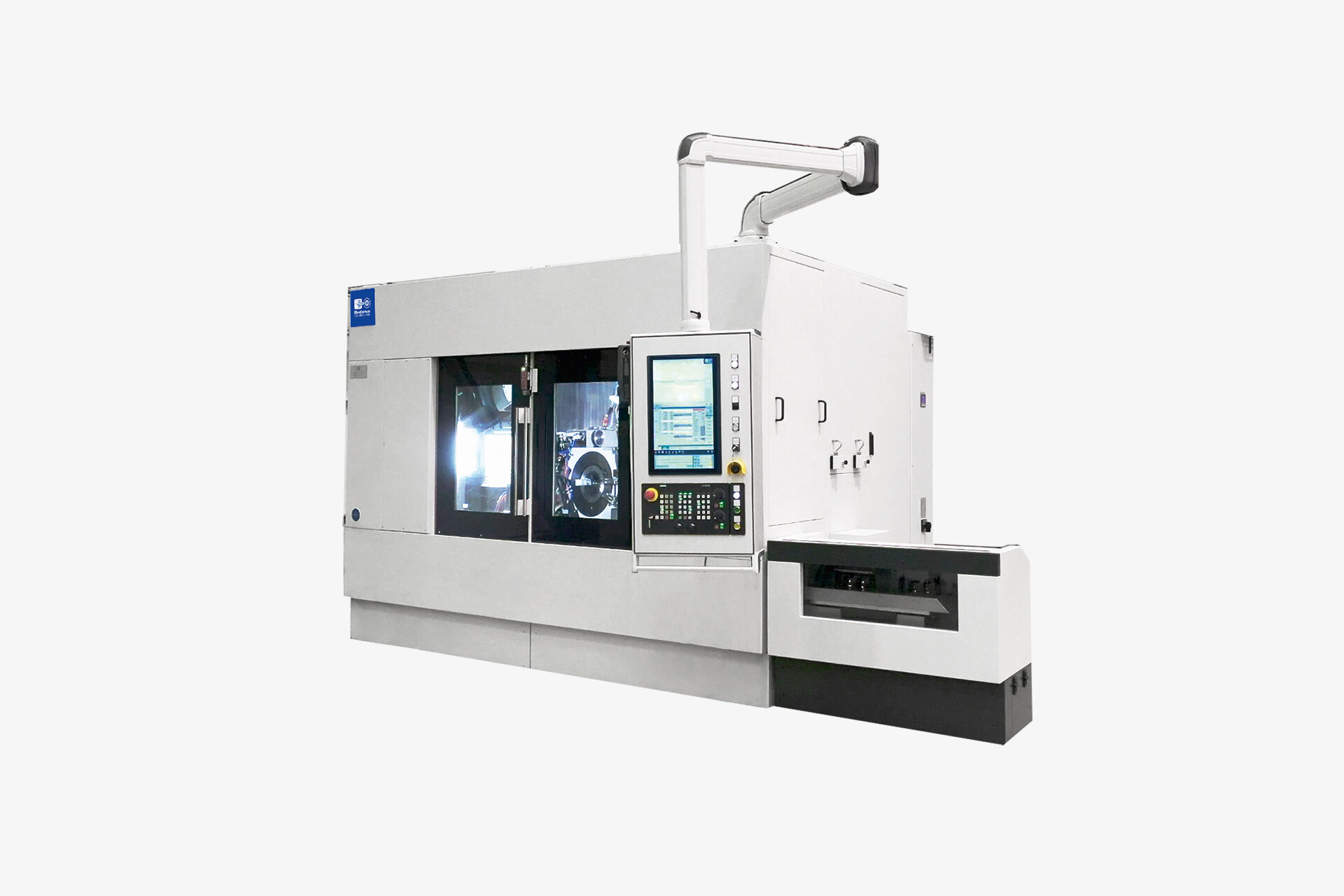

In order to give customers the highest quality, low costs per unit, and maximum adaptability all at the same time, Buderus Schleiftechnik GmbH developed the 235VH, an innovative machine platform for the high-precision machining of rotationally symmetrical axes with a diameter of up to 300 mm and a length of up to 1,000 mm.

The machines enable both combined and simultaneous machining processes. The flexible configuration options enable a wide variety of machining technologies from grinding, hard turning and honing to the use of powered tools. This means that the 235VH also facilitates the shortest set-up and processing times.

Buderus is also a specialist on the use of center drive technology. Our latest development is the 235VM center drive machine with an advanced drive head. This head achieves a working speed of up to 2,500 rpm and thus also enables the hard turning of components.

The main advantage of the center drive technology is the fact that inner and outer geometries can be machined in just one clamping, which results in greater precision as well as significantly better efficiency.

Highlights
01

The unique, sustainable machine bed made of natural granite ensures a high degree of process stability thanks to maximum rigidity, vibration damping, and optimal thermal properties.

02

Simultaneous machining with up to four cross slides in one set-up drastically reduces the set-up and cycle times with the highest shape and position tolerances.

03

Individual automation concepts offer simple, pragmatic, and even highly complex solutions.

04

The large and ergonomic 22” operation panel features outstanding haptics. and can be operated intuitively and configured individually even without additional displays.

05

The Buderus multifunctional head and the variably adjustable NS-axis, which can be swiveled up to 225°, enable the individual and flexible integration of different technologies.

Process integration

  • Simultaneous machining with up to 4 cross slides in one set-up
  • The Buderus multi-function head and the infinitely variable up to 225° swivelling NS axis allow the individual and flexible integration of different technologies
  • Ergonomic 22'' operation panel operation without additional displays, intuitive and individually configurable

  • Process integration

  • Unique, sustainable machine bed made of natural granite ensures high process stability

  • Centre drive machine

  • Specialised in the use of centre drive technology
  • Time saving
  • Internal and external geometries can be machined in just one clamping operation

  • Buderus V235
    235VM: Get inspired
    Technical specification*

    Individual machine data:

    235VH

    235VM





    Workpiece



    Swing diameter [mm]:

    340

    340

    Diameter max. [mm]:

    250

    80

    Length [mm]:

    up to 700

    up to 450





    Cross Slides



    X-Axis Travel [mm] (upper cross slide):

    500

    500

    X-Axis Travel [mm] (lower cross slide):

    200

    200

    Y-Axis Travel [option WKZ]:

    200mm

    200mm

    Z-Axis Travel [mm] (2 cross slides):

    1260mm

    500





    Multifunction Head



    Swiveling Range [°]:

    -45 up to +225

    -45 up to +225

    Positioning Accuracy [°]:

    0,001

    0,001

    Repetition Accuracy [”]:

    <3.6

    <3.6

    Resolution [°]:

    0,001

    0,001





    Workpiece Spindle C-Axis



    Max. Rotation Speed [rpm]:

    5.000

    3500

    Drive Capacity [kW]:

    24

    39

    Drive Torque [Nm]:

    50

    160

    Roundness Accuracy [μm]:

    <0.8

    <0.8





    Connected Loads



    Total Connected Load [kW]:

    ca. 50kW

    ca. 70kW

    Air Pressure [bar]:

    4 to 6

    4 to 6





    Dimensions/Weight



    Width [mm]:

    3600

    3600

    Depth [mm]:

    2650

    2650

    Height [mm]:

    2680

    2680

    Total Net Weight [kg]:

    12.000

    16.000

    *Different workpiece geometries require more individual machine designs. For this reason, the technical data given here serve as a guide, but may deviate from reality in individual cases.
